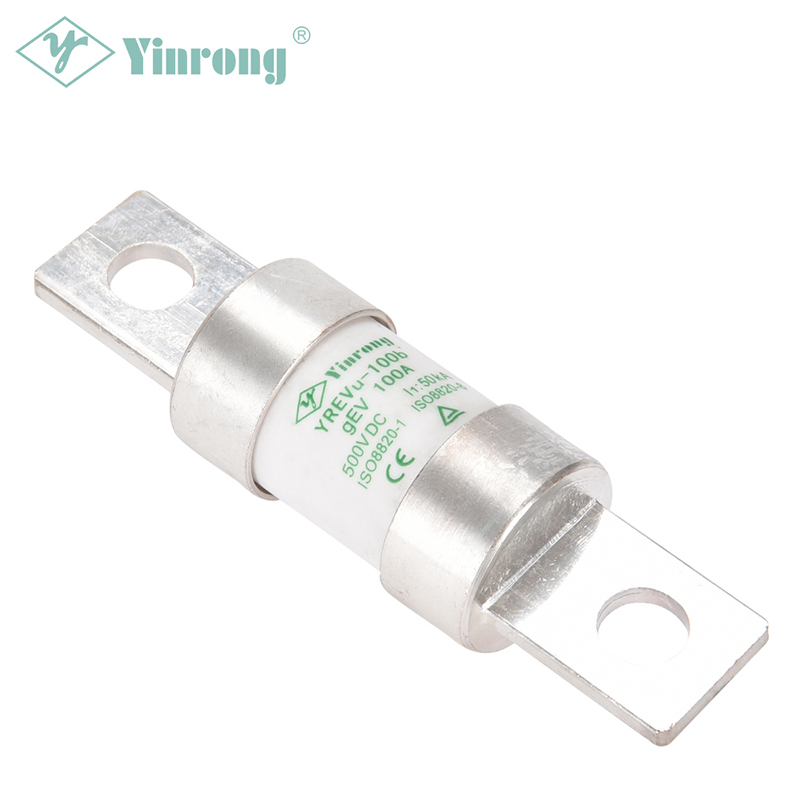

500VDC 80A EVSE Battery Module Fuse Link

Galaxy Fuse is a leading China 500VDC 80A EVSE Battery Module Fuse Link manufacturers. China fuse supplier Galaxy Fuse (Yinrong) YREVu series gEV fuses are generally designed to provide optimum auxiliary protection and high-performance protection in electrical systems and hybrid electrical vehicles, up to 500VDC in amperes from 16-80A. The YREVu-80b1 was also specifically designed from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 16-80A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Central mount cylindrical configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	K	G×H
YREVu-80b1	500VDC	16, 20, 25, 30, 35, 40, 50, 63, 80	50kA	75.5	64	60	42.5	16.5	2.2	12.7	19.3	6.5×8.5

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
