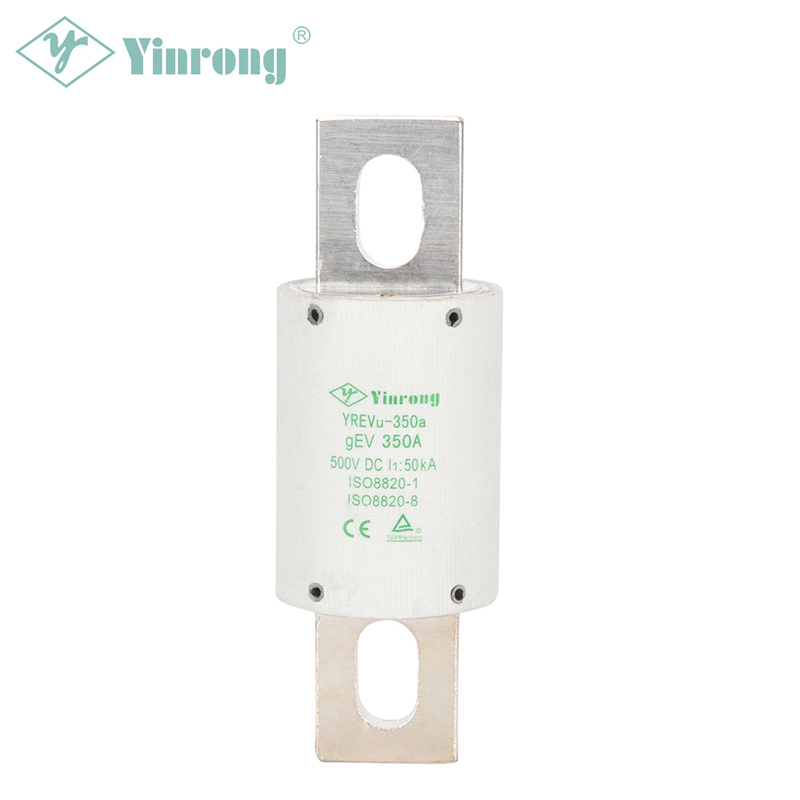

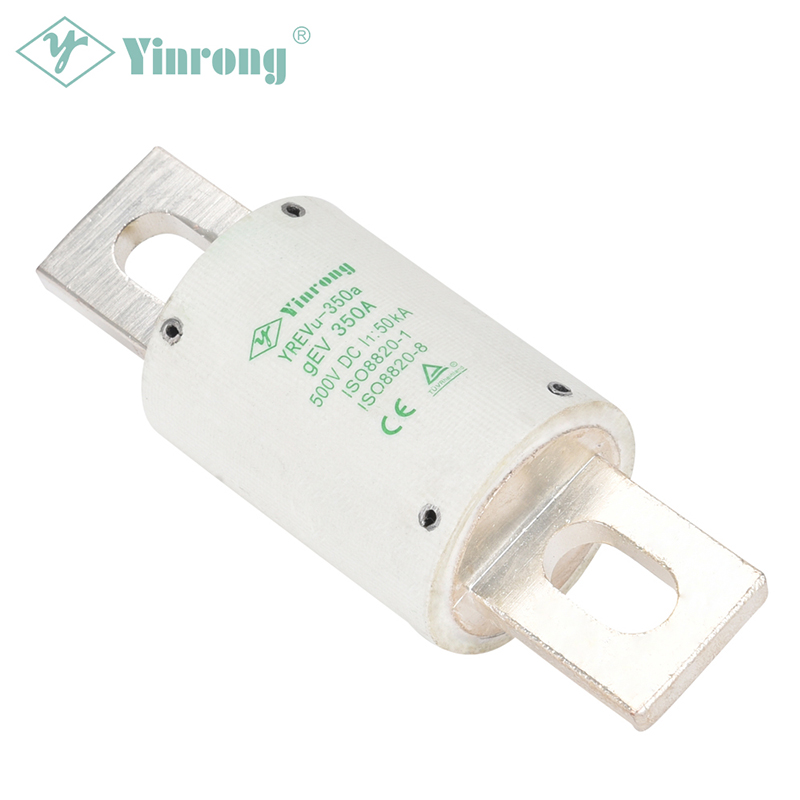

500VDC 350A HV Auto EVSE Fuse Link

Galaxy Fuse (Yinrong) YREVu series gEV fuses are specially designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and Hybrid Electrical Vehicles, up to 500VDC in amperes from 200-350A. The YREVu-500VDC 350A HV Auto EVSE Fuse Link was specifically built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 200-350A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Bolt mount round body configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	G×H
YREVu-350a	500VDC	200, 250, 300, 350	50kA	112	90.2	72.8	56	40	6	25	10.3×19

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
