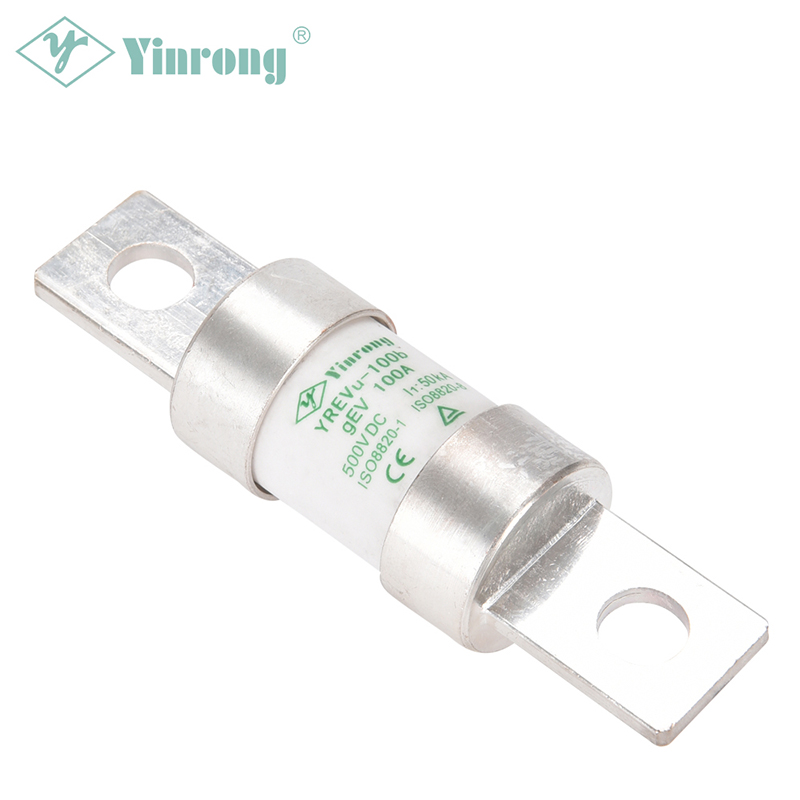

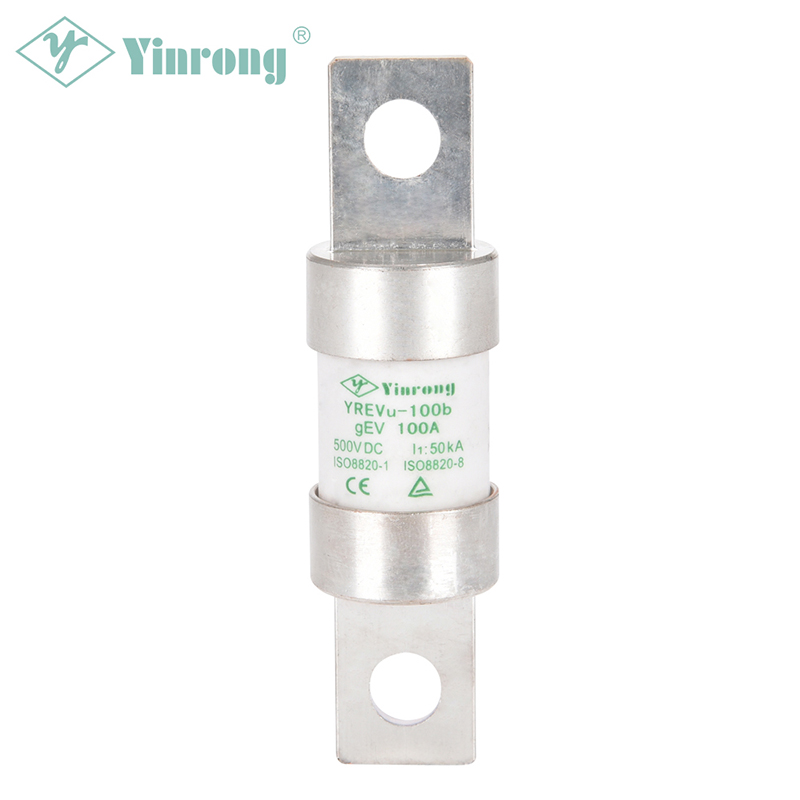

500VDC 100A EV Automotive UPS Fuse Link

Galaxy Fuse (Yinrong) YREVu series gEV fuses are specially designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and Hybrid Electrical Vehicles, up to 500VDC in amperes from 70-100A. The YREVu-500VDC 100A EV Automotive UPS Fuse Link was specifically built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 70-100A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Central mount cylindrical configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	G×H
YREVu-100b	500VDC	70, 80, 90, 100	50kA	91.6	72.3	71	43.7	24	3	18	8.8×9.6

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
