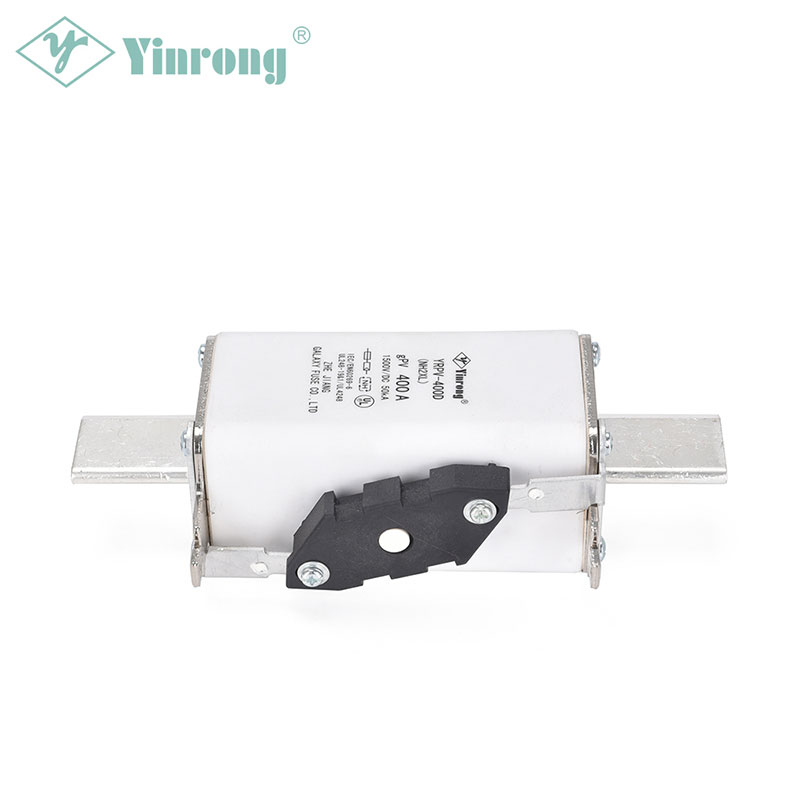

1500VDC 400A NH2XL Solar PV Fuse Link with Striker

YRPV-400D 1500VDC Solar PV Fuse Link is designed to protect and isolate Photovoltaic (PV) array combiners and DC circuit breakers. Enhanced structural fuse link with an NH2XL standardized size effectively protect the 1500VDC Photovoltaic (PV) systems. 1500VDC 400A NH2XL Solar PV Fuse Link with Striker offers a range of various ampere ratings ranging from 125A to 400A, helping to match the specific conditions of different PV applications such as PV array protection, PV Inverter DC input protection, and more. Zhejiang Galaxy Fuse Co. Ltd. (Yinrong) continues to develop new Solar Photovoltaic (PV) Fuse products to meet the emerging needs of the PV industry.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1500VDC Photovoltaic (PV) system available
• 225-355A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH2XL construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 50kA breaking capacity approved by UL
• Striker and microswitch available

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

Recommended Fuse Holder

• YRPV-400D 1000VDC Fuse Base

Optional Accessories

• Striker
• Microswitch

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capacity	Safety certificate			Power loss 1.0In(W)	Net weight
Product code	Rated current	Breaking capacity				Power loss 1.0In(W)	Net weight
YRPV400D/225NH	225A	1500Vdc UL:50kA	○	○	●	38.6	1.315kg
YPRV400D/250NH	250A		○	○	●	43.5
YRPV400D/315NH	315A		○	○	●	52.3
YRPV400D/355NH	355A		○	○	●	58.0

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……400A

④ ……Rated current of fuse link……E.g:315A

Time-current Curve

We reserve the right to make technical alterations
