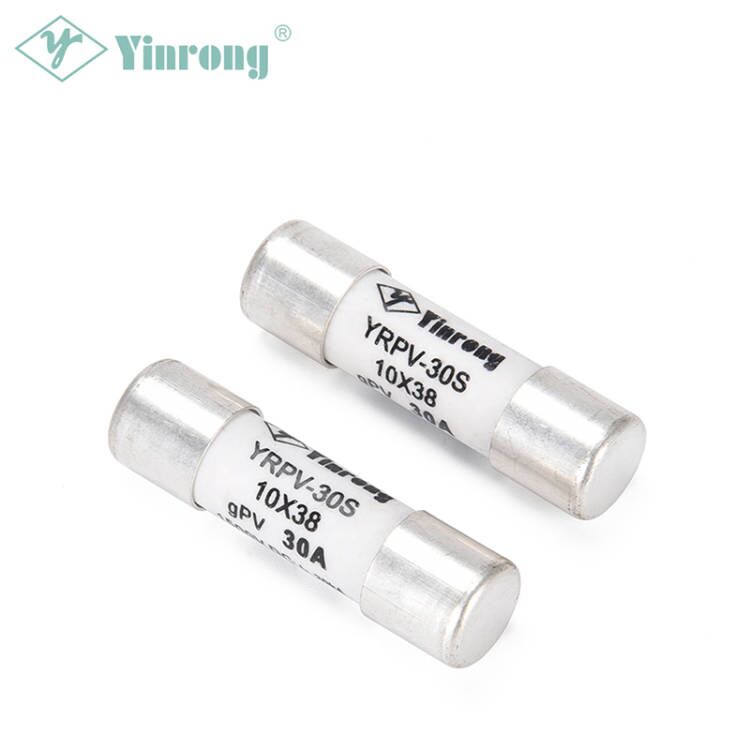

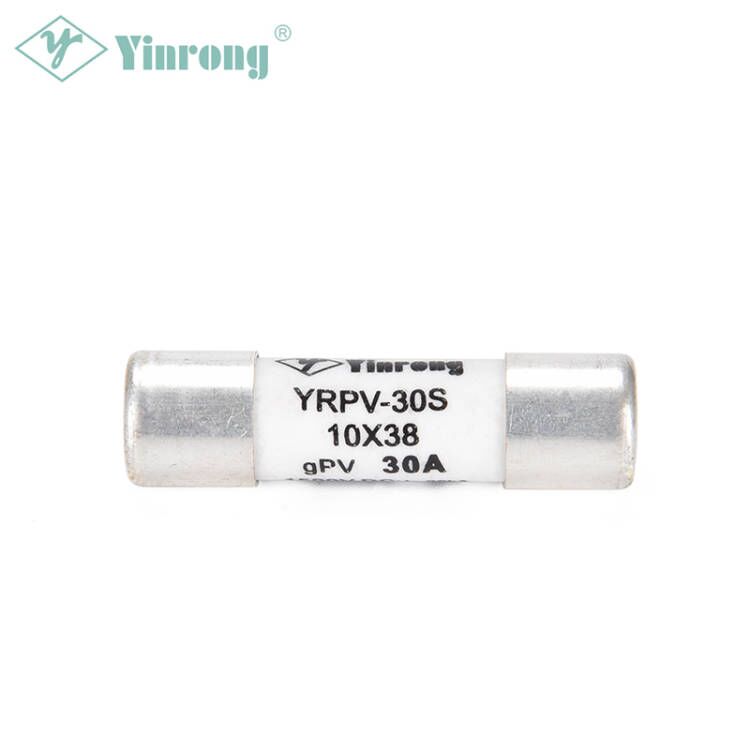

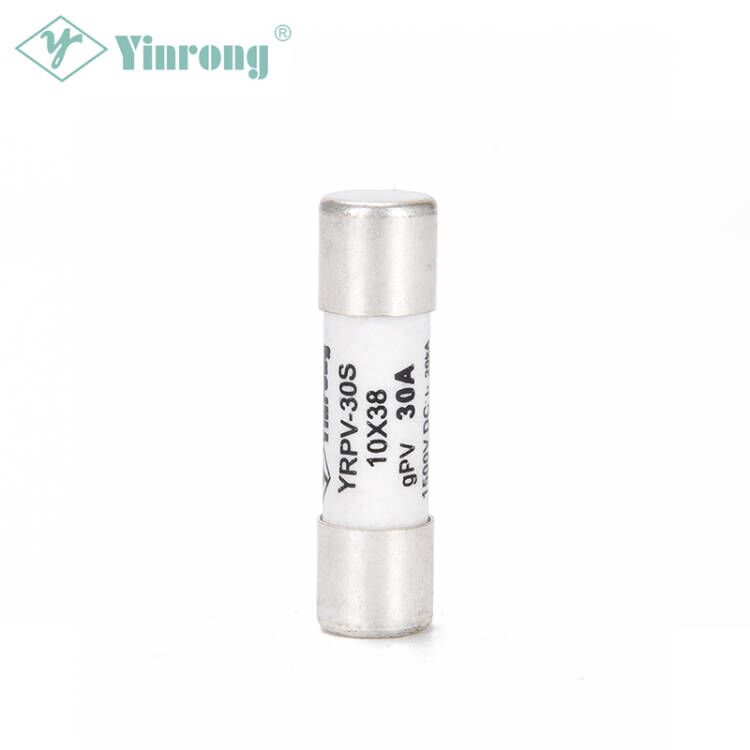

1500VDC 30A 10×38mm Solar PV Fuse Link

The YRPV-30S 1500VDC Solar PV Fuse Link is designed to provide rapid protection under conditions of overload current associated with Photovoltaic (PV) systems. This 10x38mm full-size cylindrical fuse secures the 1500VDC Photovoltaic (PV) systems. The 1500VDC 30A 10×38mm Solar PV Fuse Link has multiple ampere ratings ranging from 2A to 30A to help meet the specific requirements of various Photovoltaic (PV) applications, including PV combiner boxes, inverters, and more. As an explorer of Solar Photovoltaic (PV) Fuses in China, Zhejiang Galaxy Fuses Co. Ltd. (Yinrong) insists on using high-quality materials throughout the process to ensure the performance of each fuse.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-6
• UL248-19

Class of Operation

• gPV

Features & Benefits

• 1500VDC Photovoltaic (PV) system available
• 2-30A ampere ratings available
• Meets IEC and UL Photovoltaic standards for global acceptance
• Standardized cylindrical construction
• Low power dissipation performance for energy efficiency
• DIN Rail mountable
• 15kA breaking capacity approved by TUV, CE
• 20kA breaking capacity approved by UL

Applications

• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• Re-combiner units
• In-line PV module protection

Recommended Fuse Holder

• Without Indicator: YRPV-30 1500VDC Fuse Holder
• With Indicator: YRPV-30X 1500VDC Fuse Holder

Optional Accessories

• YRPV-30 Clip

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capacity	Safety certificate			Power loss 1.0In(W)	Net weight
Product code	Rated current	Breaking capacity				Power loss 1.0In(W)	Net weight
YRPV30S/02NF	2A	1500Vdc TUV&CE:15kA UL:20kA	●	●	●	0.9	10g
YRPV30S/03NF	3A		●	●	●	1.0
YRPV30S/04NF	4A		●	●	●	1.2
YRPV30S/05NF	5A		●	●	●	1.3
YRPV30S/06NF	6A		●	●	●	1.5
YRPV30S/08NF	8A		●	●	●	1.8
YRPV30S/10NF	10A		●	●	●	2.2
YRPV30S/12NF	12A		●	●	●	2.3
YRPV30S/15NF	15A		●	●	●	2.7
YRPV30S/20NF	20A		●	●	●	3.2
YRPV30S/25NF	25A		●	●	●	3.8
YRPV30S/30NF	30A		●	●	●	4.5

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……30A

④ ……Rated current of fuse link……E.g:15A

Time-current Characteristic

Standard:UL248-19		Standard:IEC60269-6
135% In	200% In	113% In	145% In
<1h fusing	<240s fusing	>1h non fusing	<1h fusing

Time-current Curve
