Products > Solar Power Protection PV Fuse > 1500VDC Solar PV Fuse Link > 1500VDC 160A NH0 Solar PV Fuse Link

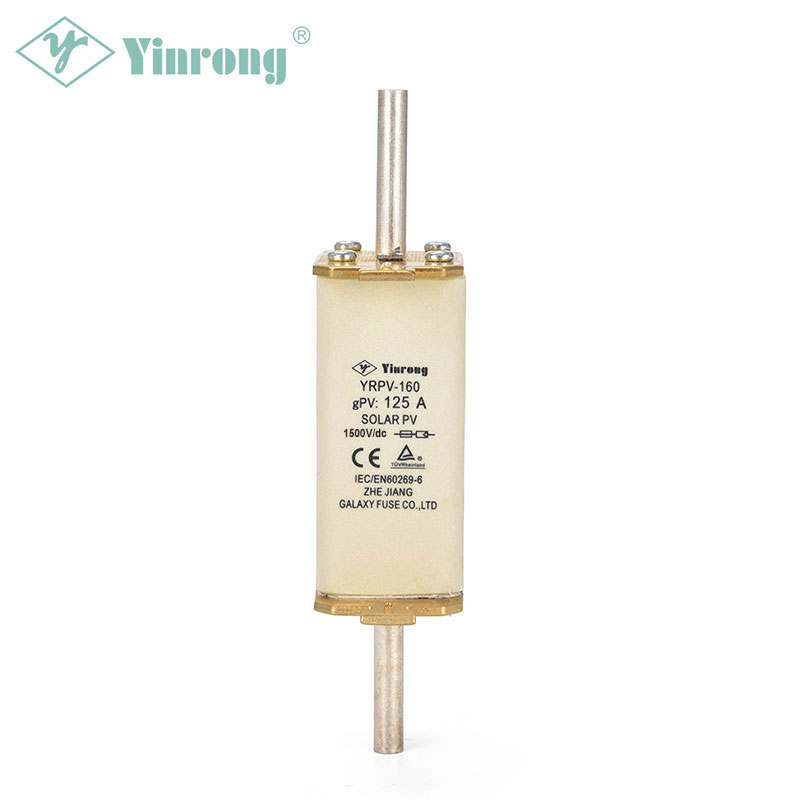

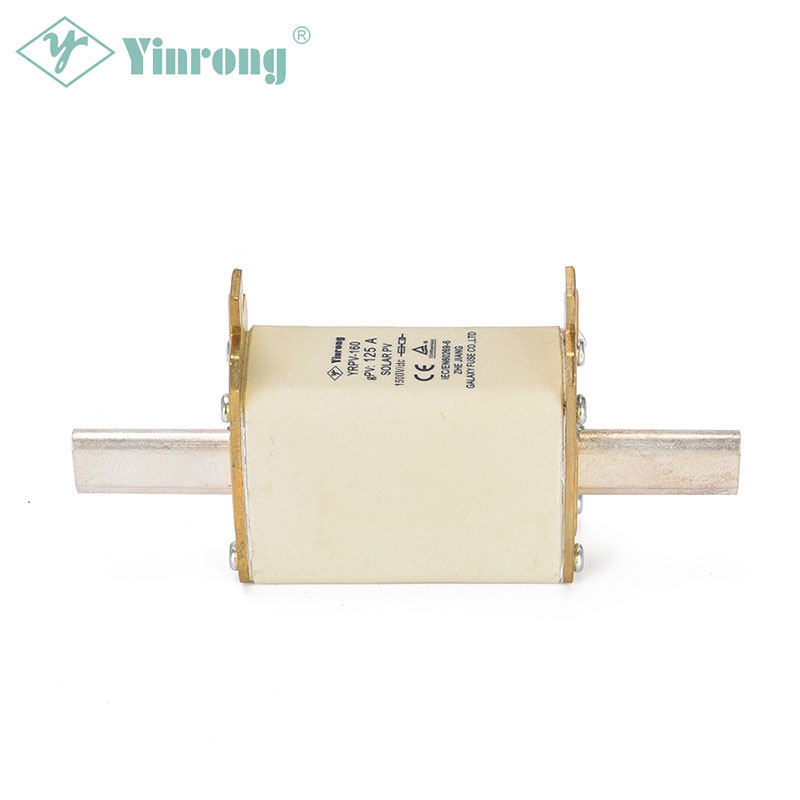

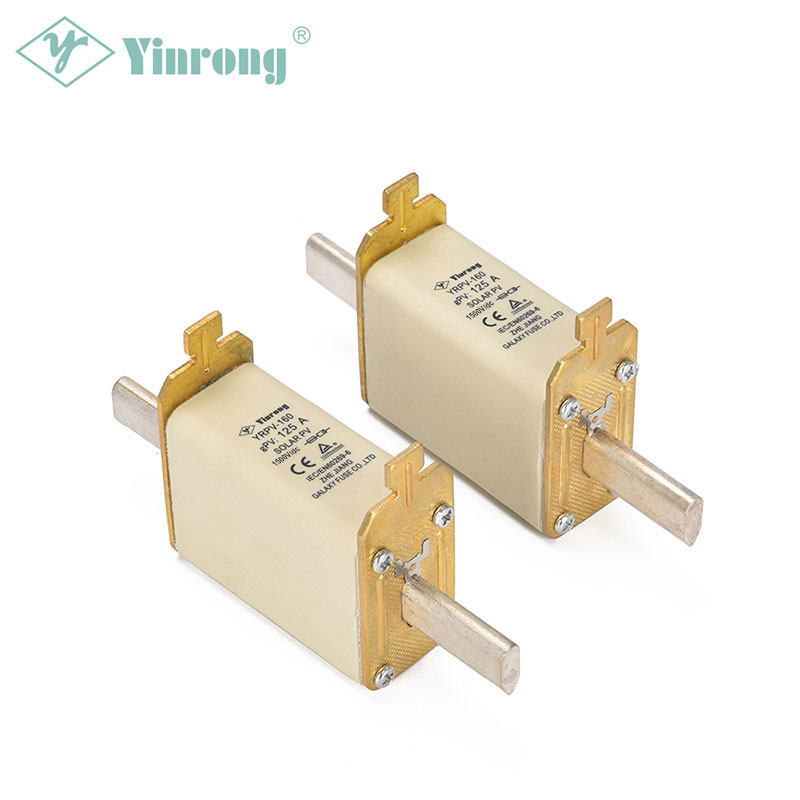

1500VDC 160A NH0 Solar PV Fuse Link
Galaxy Fuse is a leading China 1500VDC 160A NH0 Solar PV Fuse Link manufacturers. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) is a Chinese fuse manufacturer, who researched and developed Solar PV Fuse independently to meet the increasing needs of the Photovoltaic (PV) industry around the world. YRPV-160 1500VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced NH construction fuse link with an NH0 size can effectively protect 1500VDC Photovoltaic (PV) systems. YRPV-160 1500VDC Solar PV Fuse Link provides various ampere ratings from 40-160A, which helps to meet specific situations in different Photovoltaic (PV) applications, such as PV combiner box and PV inverter.
Send Inquiry
Product Description
1500VDC 160A NH0 Solar PV Fuse Link
• GB/T13539.6
• 40-160A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH0 construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity approved by TUV, CE
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION
Approvals & Standards
• IEC60269-6• GB/T13539.6
Class of Operation
• gPVFeatures & Benefits
• 1500VDC Photovoltaic (PV) system available• 40-160A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH0 construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity approved by TUV, CE
Applications
• Combiner box• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

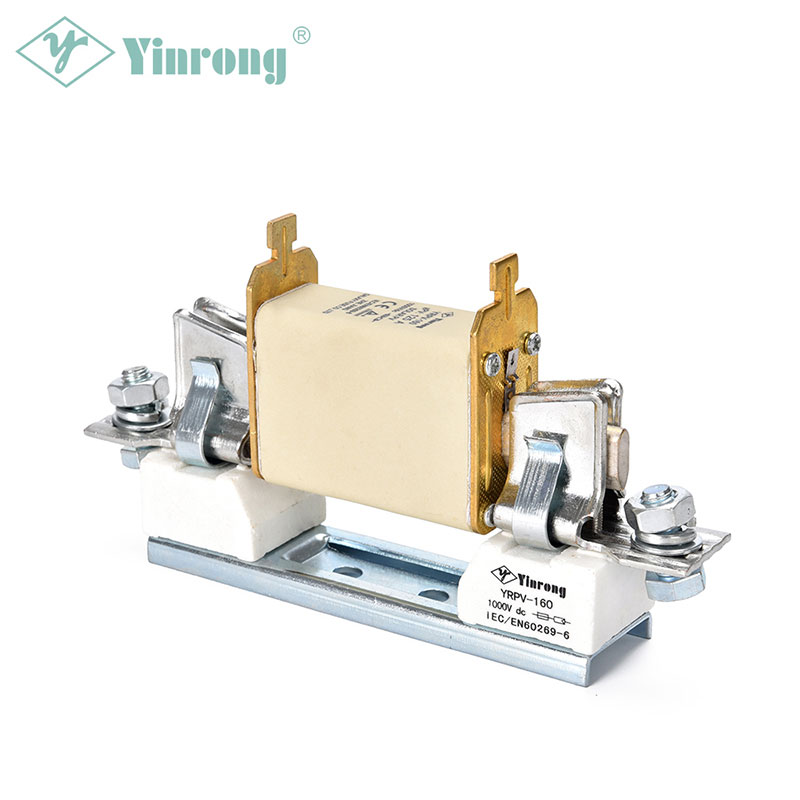

Recommended Fuse Holder
• YRPV-160 1500VDC Fuse BaseCountry of Origin
• People's Republic of ChinaParameters
| Product code | Rated current | Breaking capactity | Safety certificate | Power loss1.0In(W) | Net weight | ||
|---|---|---|---|---|---|---|---|
|
|
|
|||||
| YRPV160NH | 40-160A | 1500Vdc:20kA | ○ | ○ | ○ | 17.4 | 0.275kg |
Size (mm)
Model Explanation
① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……160A
④ ……Rated current of fuse link……E.g:100A
Time-current Curve
