Products > ESS and Semiconductor High Speed Fuse > British BS88 Style High Speed Fuse > 690V 125A BS88 Style High Speed Fuse

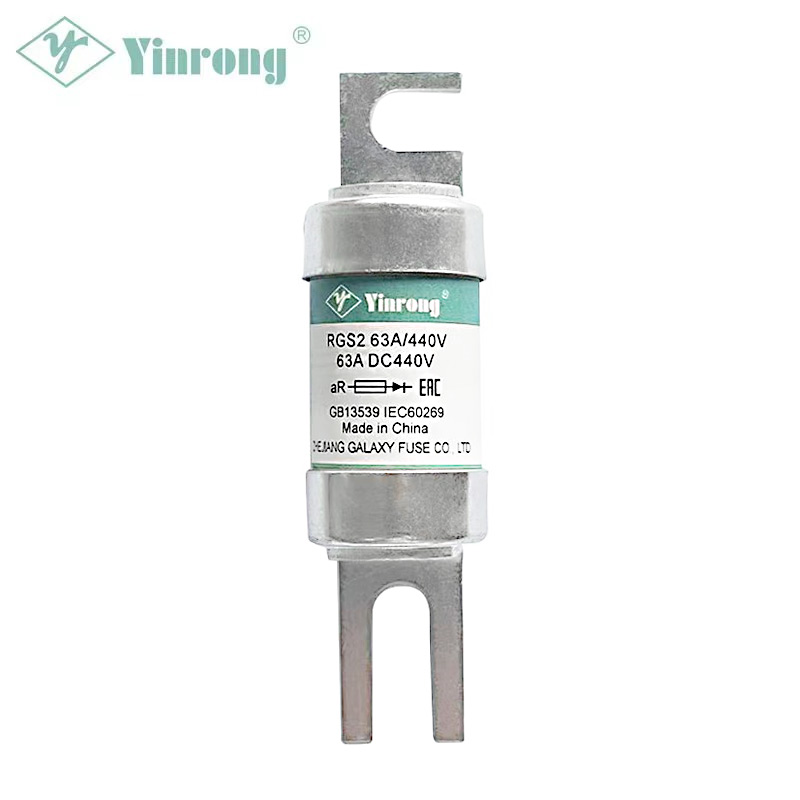

690V 125A BS88 Style High Speed Fuse
Galaxy Fuse is a leading China 690V 125A BS88 Style High Speed Fuse manufacturers. China fuse manufacturer Galaxy Fuse (Yinrong)’s RGS2 BS88 high speed fuse is specially designed to protect semiconductor devices. Available in two different operation classes gR and aR. RGS2 BS88 gR fuse is designed for both overload and short-circuit protection. RGS2 BS88 aR fuse is designed for short-circuit protection only. RGS2 BS88 high speed fuse provides a wide amperage rating of 25-125A under the rated voltage of 690VAC/440VDC, which can typically fit most semiconductor devices. This RGS2 BS88 high speed fuse conformed to the nation standard GB13539.4 and the international electrical committee standard IEC60269-4. With a strengthful R＆D capacity, Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers’ requirements.
Send Inquiry
Product Description
690V 125A BS88 Style High Speed Fuse
• IEC60269-4
• aR
• 25-125A ampere ratings available
• Extremely high Interrupting rating
• Centre-bolted tags in compact design
• Superior cycling ability
• Offers various amperage in less space for design flexibility
• Conforms to IEC standards for global acceptance
• Low power dissipation and temperature rise for energy efficiency
• UPS
• Motor drives
• Solid state relays
• Other semiconductors (diodes, thyristors, triacs, etc)
Approvals & Standards
• GB/T13539.4• IEC60269-4
Class of Operation
• gR• aR
Features & Benefits
• 690VAC/440VDC electrical system available• 25-125A ampere ratings available
• Extremely high Interrupting rating
• Centre-bolted tags in compact design
• Superior cycling ability
• Offers various amperage in less space for design flexibility
• Conforms to IEC standards for global acceptance
• Low power dissipation and temperature rise for energy efficiency
Applications
• Power rectifiers• UPS
• Motor drives
• Solid state relays
• Other semiconductors (diodes, thyristors, triacs, etc)
Country of Origin
• People's Republic of ChinaParameters
| Model/Size | Rated Voltage (V) | Rated Current (A) | Breaking Capacity (kA) | Overall Dimension | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D | E | F | H | J | K | L | M | N | R | e | φc | ||||
| RGS2 | 690VAC/440VDC | 25-125A | AC:100kA DC:40kA | 29 | 53.5 | 75.8 | 13 | 19 | 9 | 14 | 103 | 13 | 9.3 | 19.7 | 2.0 | 26 |
Size (mm)
