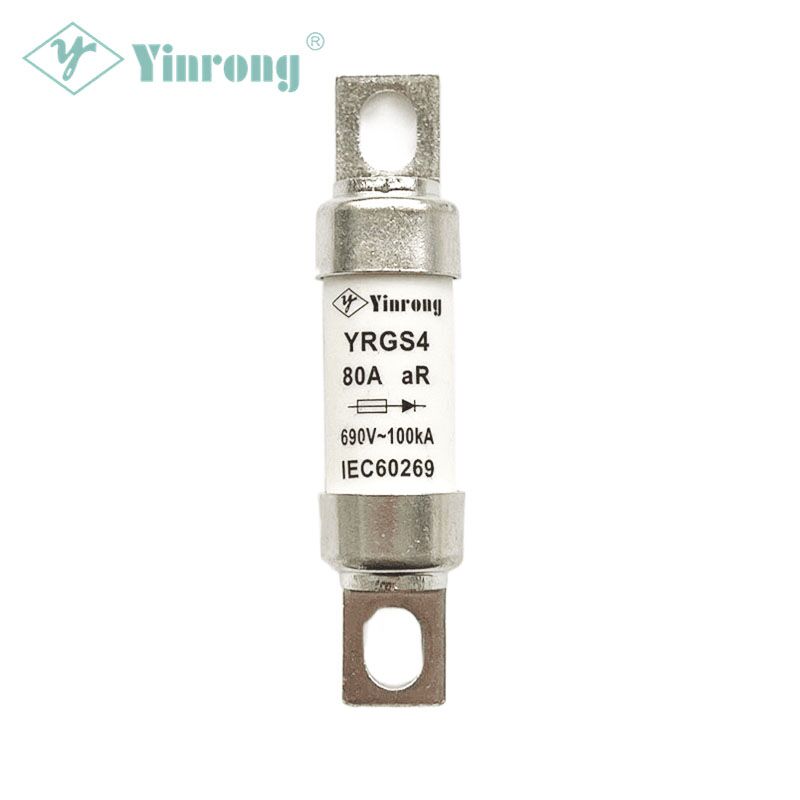

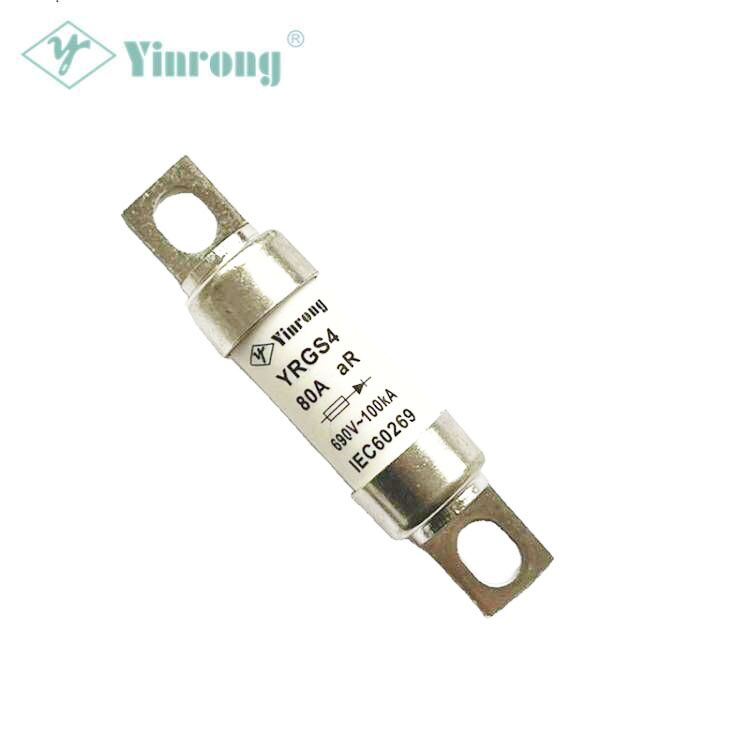

690V 100A YRGS4 High Speed Fuse
Galaxy Fuse is a leading China 690V 100A YRGS4 High Speed Fuse manufacturers. China high speed fuse manufacturer Galaxy Fuse (Yinrong)’s YRGS4 high speed fuse is specially designed to protect semiconductor devices. YRGS4 high speed fuse is designed for short-circuit protection only. YRGS4 high speed fuse provides a wide amperage rating of 10-100A under the rated voltage of 690VAC/550VDC, which can typically fit most semiconductor devices. This YRGS4 high speed fuse conformed to the nation standard GB13539.4 and the international electrical committee standard IEC60269-4. With a powerful R＆D capacity, Galaxy Fuse (Yinrong) also offers various high speed fuses to meet emerging energy storage industry.
Send Inquiry
Product Description
690V 100A YRGS4 High Speed Fuse
• IEC60269-4
• 10-100A ampere ratings available
• High breaking capacity
• BS88 style bolted tag mounting
• Provides various amperage in compact size
• Conforms to IEC standards for global acceptance
• Low power loss and temperature rise for energy efficiency
• AC/DC common systems
• Frequency converters
• Battery energy storage systems
• Regenerative drives
• Other semiconductors
Approvals & Standards
• GB/T13539.4• IEC60269-4
Class of Operation
• aRFeatures & Benefits
• 690VAC/550VDC electrical system available• 10-100A ampere ratings available
• High breaking capacity
• BS88 style bolted tag mounting
• Provides various amperage in compact size
• Conforms to IEC standards for global acceptance
• Low power loss and temperature rise for energy efficiency
Applications
• Power converters/rectifiers• AC/DC common systems
• Frequency converters
• Battery energy storage systems
• Regenerative drives
• Other semiconductors
Country of Origin
• People's Republic of China
Parameters
| P/N | Current (A) | I²t (A²s) 690VAC/550VDC |
Power Loss (W) |
Mounting | |
|---|---|---|---|---|---|
| Pre-arcing | Melt | ||||
| YRGS4-690V/10A | 10 | 8 | 90 | 2 |
Bolt M6 Torque 5.5N.m |
| YRGS4-690V/16A | 16 | 23 | 270 | 3.5 | |
| YRGS4-690V/20A | 20 | 40 | 450 | 4.5 | |
| YRGS4-690V/25A | 25 | 58 | 610 | 6.3 | |
| YRGS4-690V/32A | 32 | 95 | 1010 | 8 | |
| YRGS4-690V/40A | 40 | 130 | 1500 | 9.5 | |
| YRGS4-690V/50A | 50 | 210 | 2020 | 11 | |
| YRGS4-690V/63A | 63 | 350 | 3800 | 13 | |
| YRGS4-690V/80A | 80 | 580 | 7500 | 19 | |
| YRGS4-690V/100A | 100 | 1200 | 10200 | 24 | |
Size (mm)
Time Current Characteristic Curve
