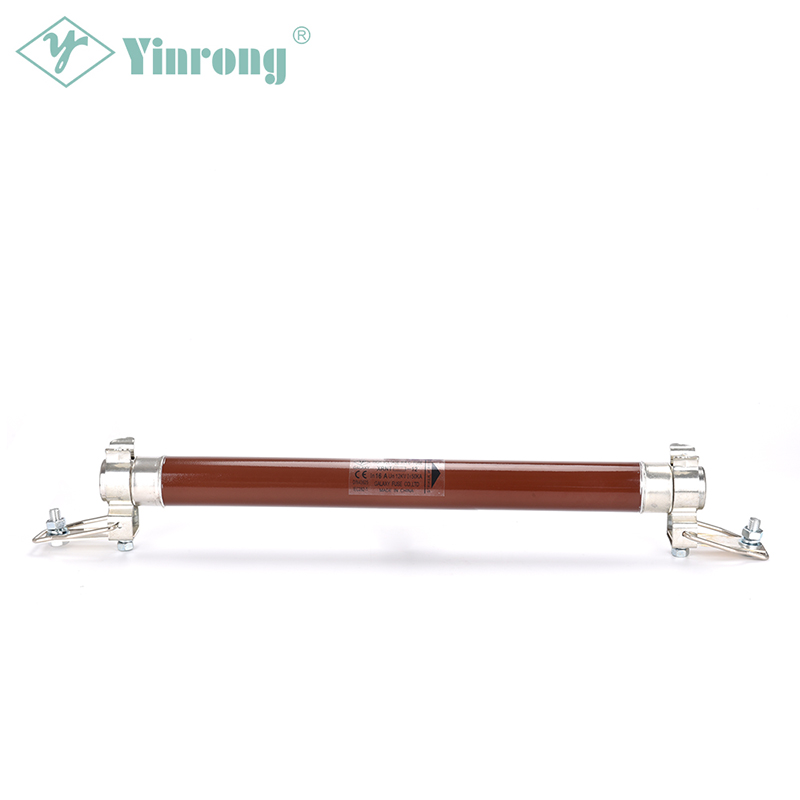

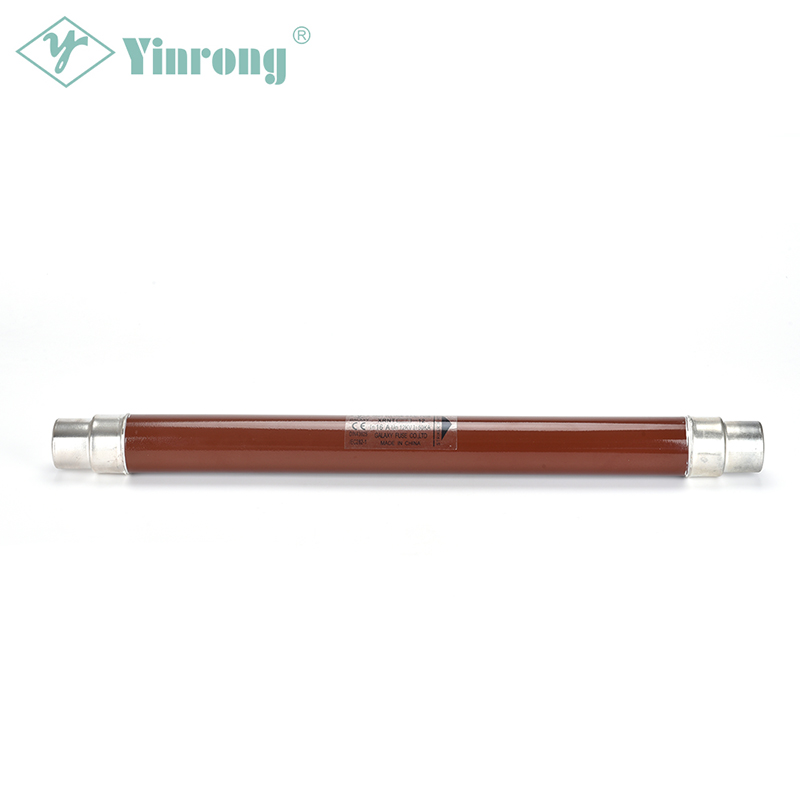

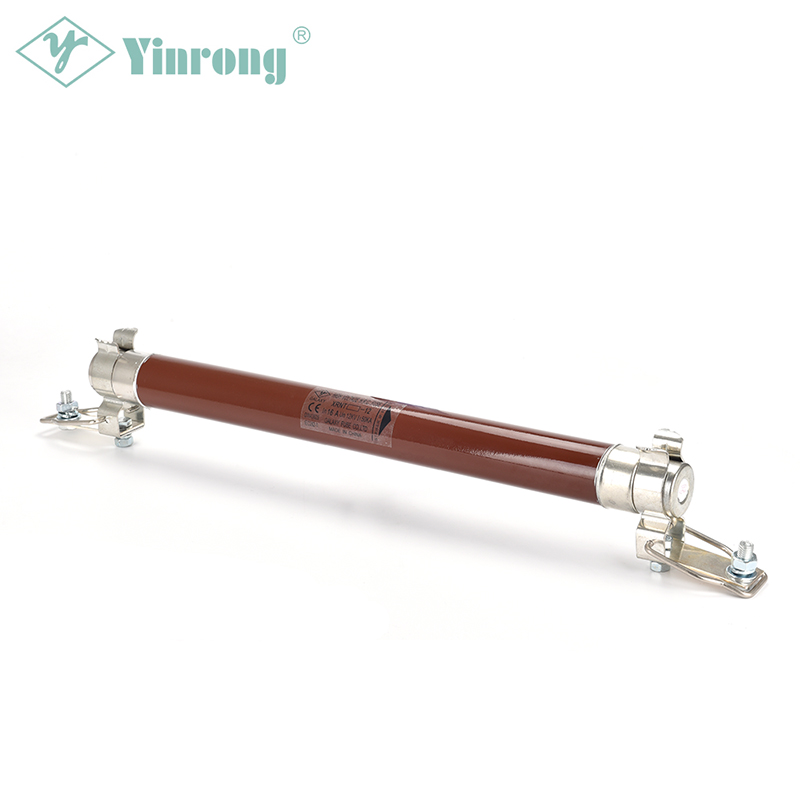

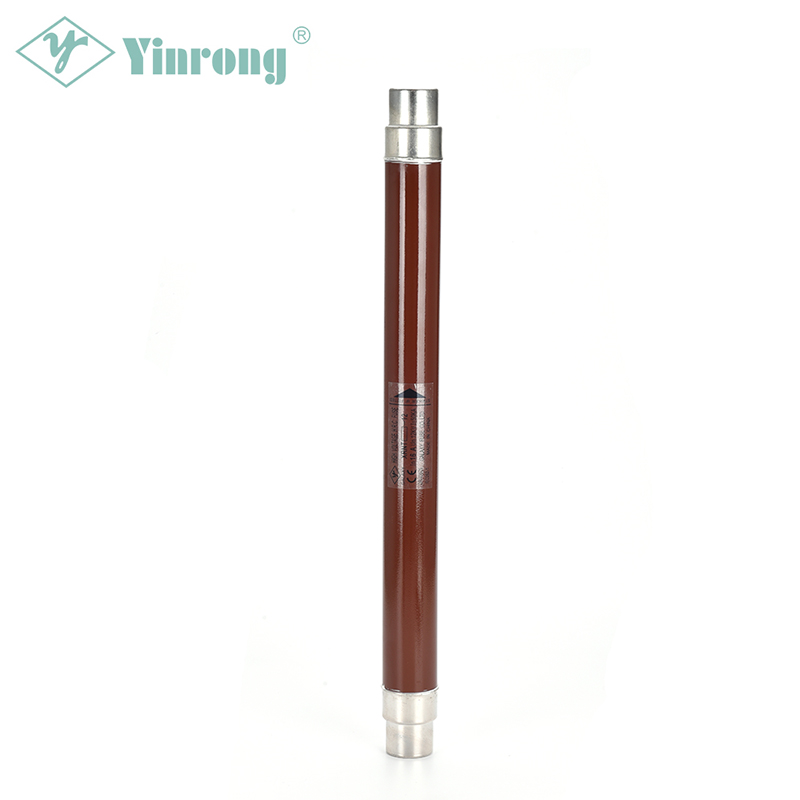

12kV 200A XRNT Transformer Protection Current Limiting Fuse

Galaxy Fuse’s (Yinrong) XRNT type high voltage transformer protection current limiting fuses are designed with insert installation, which is convenient for installation and removal. The 12kV 200A XRNT Transformer Protection Current Limiting Fuse is made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with high-purity quartz sand. The fuse tube is made of heat resistance, high-duty ceramic or epoxy glass. When a fault circuit happens and causes an arc, quartz sand will extinguishes the arc immediately.

Send Inquiry

Product Description

Approvals & Standards

• IEC60282-1

Features & Benefits

• High drop-out current
• Good performance and fast action in overload and short circuit protection
• Comply with international standard size

Applications

• Transformer protection
• Switch Protection
• Vacuum Contact Protection

Recommended Accessories

• XRNT Clips

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (kV)	Rated Current (A)	Rated Drop-Out Current (kA)	Overall Dimension
Model/Size	Rated Voltage (kV)	Rated Current (A)	Rated Drop-Out Current (kA)	φD	L (mm)
XRNT	3.6	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	191
XRNT	7.2	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	31.5	51	292
XRNT	7.2	80, 100, 125, 160	31.5	76	292
XRNT	12	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	292
XRNT	12	50, 63, 71, 80, 100	31.5	76	292
XRNT	12	125	31.5	76	292
XRNT	12	160, 200	31.5	88	292
XRNT	24	6.3, 10, 16, 20, 25, 31.5, 40	31.5	51	442
XRNT	24	50, 63, 71, 80, 100	31.5	76	442
XRNT	24	125	31.5	76	442
XRNT	24	160	31.5	88	442
XRNT	40.5	3.15, 6.3, 10, 16, 20, 25	31.5	51	537
XRNT	40.5	31.5、40	31.5	76	537
XRNT	40.5	63	31.5	88	537

Size (mm)
