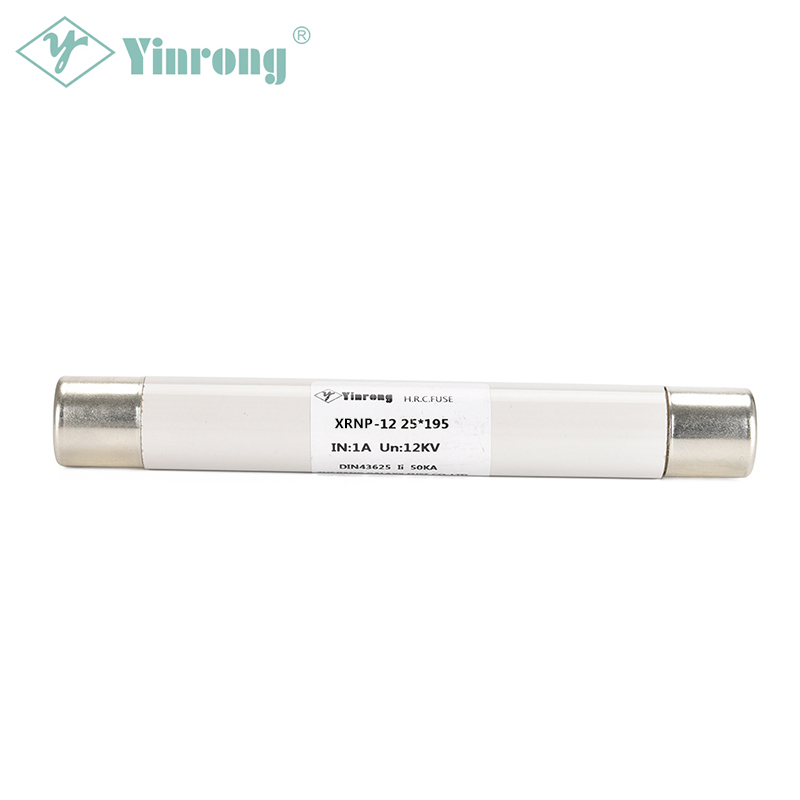

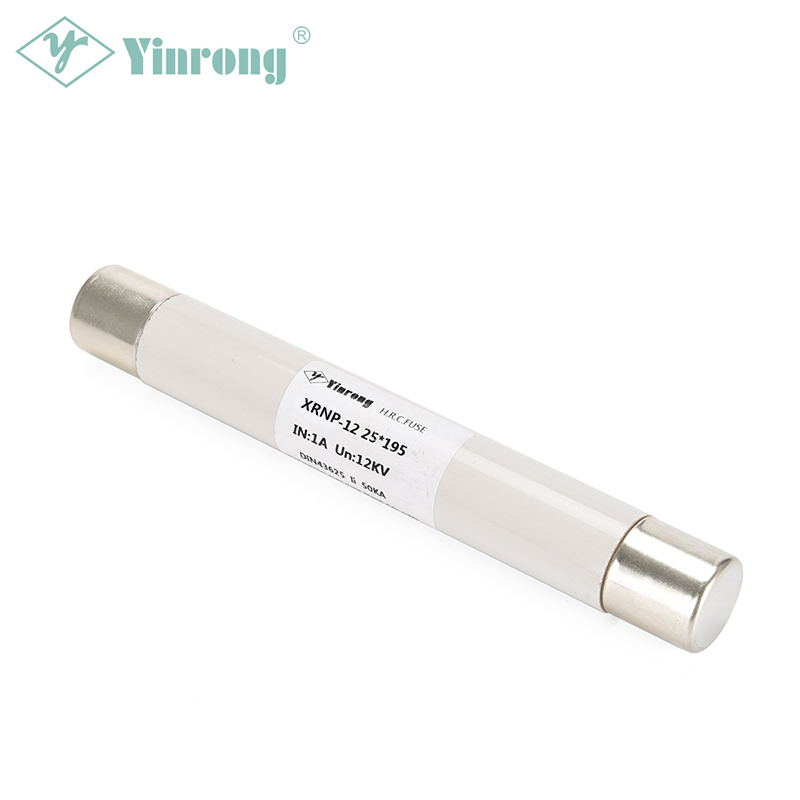

12kV 15A XRNP Current Limiting Fuse

Galaxy Fuse’s (Yinrong) XRNP type high voltage HRC current limiting fuses are designed with insert installation, which is convenient for installation and removal. The 12kV 15A XRNP Current Limiting Fuse is made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high-duty ceramic or epoxy glass. When a fault circuit happens and causes an arc, quartz sand will extinguishes the arc immediately.

Send Inquiry

Product Description

Approvals & Standards

• IEC60282-1

Features & Benefits

• High breaking capacity
• Good performance and fast action in overload and short circuit protection
• Comply with international standard size

Applications

• Transformer protection
• Switch Protection
• Vacuum Contact Protection

Recommended Accessories

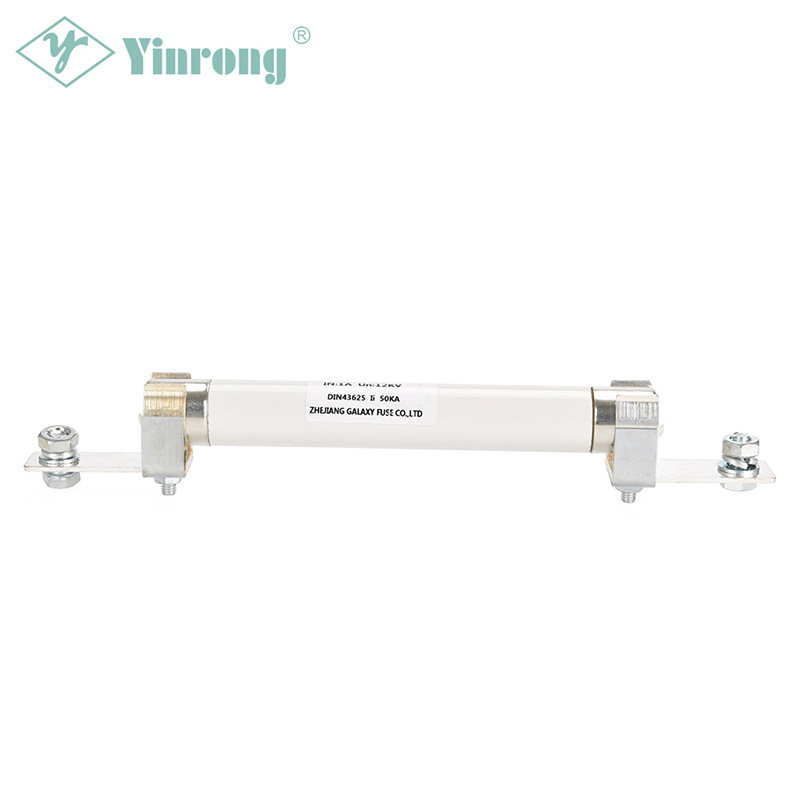

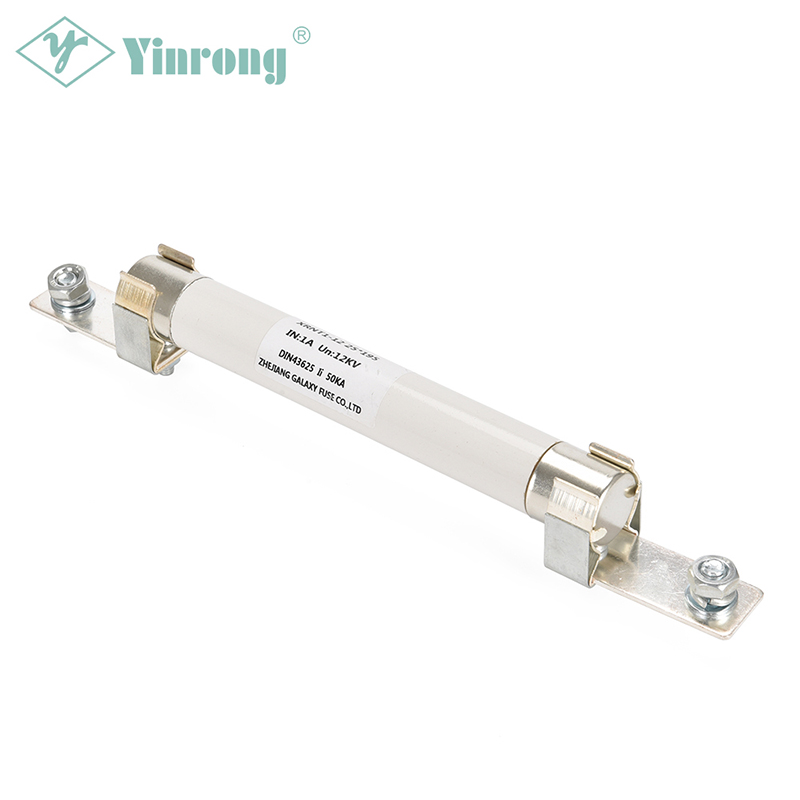

• XRNP Clips

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (kV)	Rated Current (A)	Rated Drop-Out Current (kA)	Overall Dimension
Model/Size	Rated Voltage (kV)	Rated Current (A)	Rated Drop-Out Current (kA)	L (mm)
XRNP	3.6	0.5, 1, 2, 3.15 ,6.3	50	142
XRNP	7.2	0.5, 1, 2, 3.15 ,6.3	50	142/195
XRNP	12	0.5, 1, 2, 3.15	40	195
XRNP	24	0.5, 1, 2, 3.15	40	355
XRNP	40.5	0.5, 1, 2, 3.15	50	465

Size (mm)
