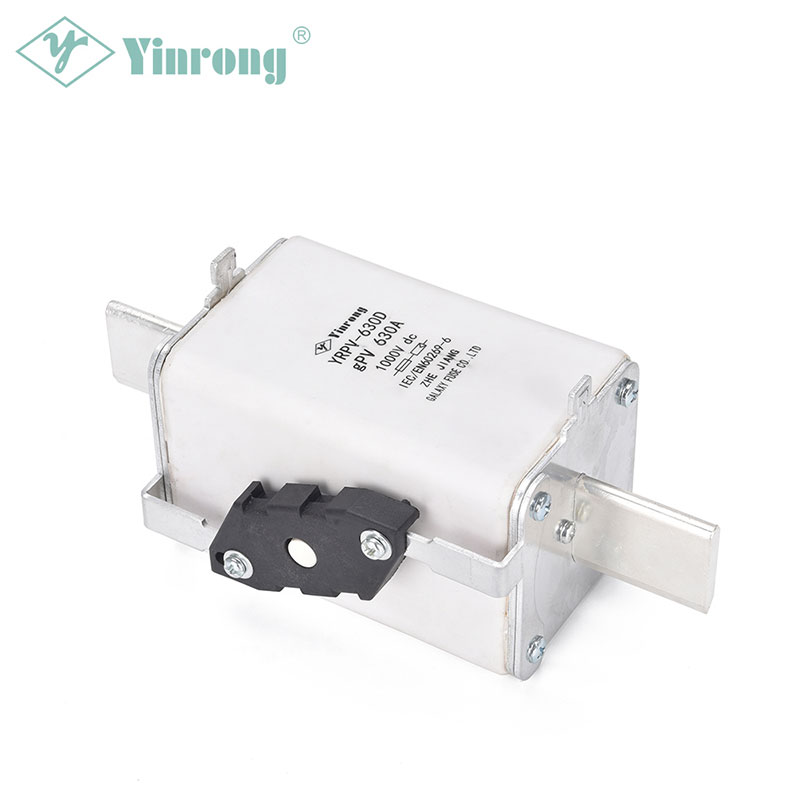

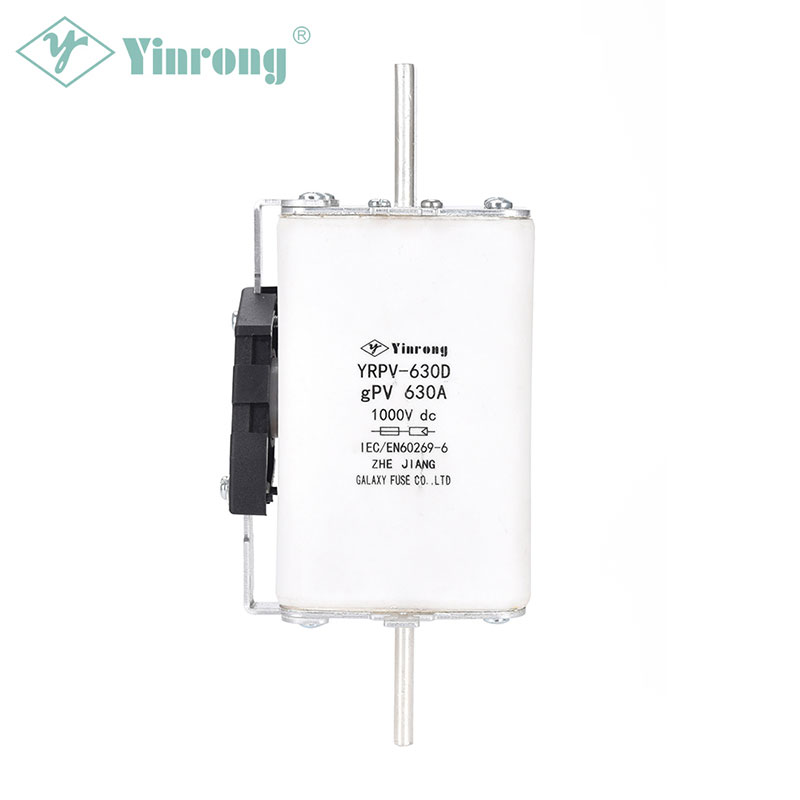

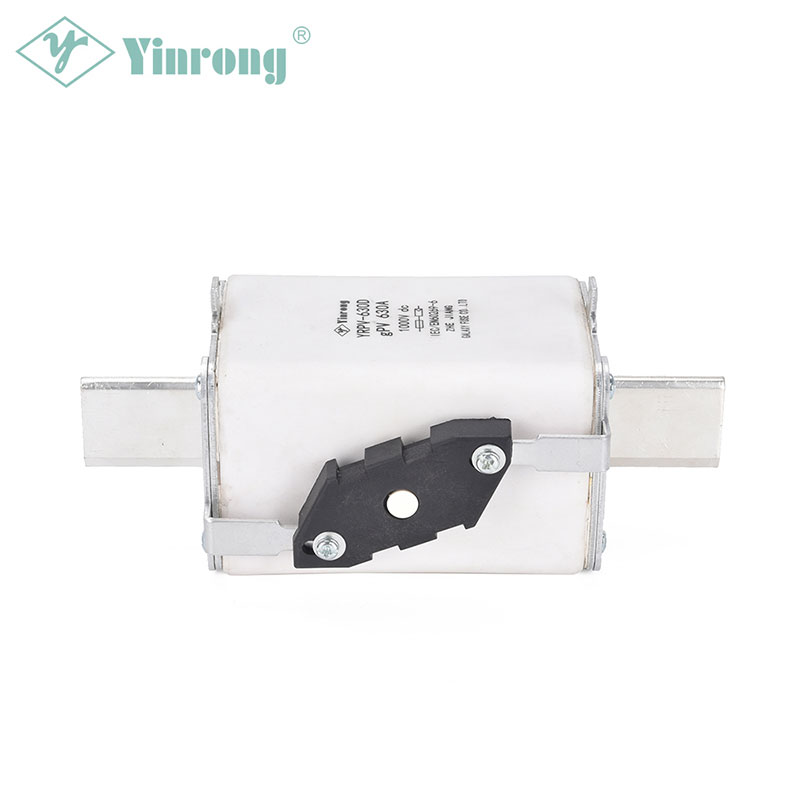

1000VDC 630A 3L Solar PV Fuse Link
Chinese 1000VDC 630A 3L Solar PV Fuse Link manufacturer Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) researched and developed Solar PV Fuse independently to meet the emerging needs of the Photovoltaic (PV) industry worldwide. YRPV-630D 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse link with an 3L standardized size can protect 1000VDC Photovoltaic (PV) systems effectively. YRPV-630D 1000VDC Solar PV Fuse Link offers various ampere ratings from 315A to 630A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection, PV Inverter DC input protection.
Send Inquiry
Product Description
1000VDC 630A 3L Solar PV Fuse Link
• GB/T13539.6
• 315-630A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized 3L construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity
• Striker and microswitch available
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection
• Microswitch
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION
Approvals & Standards
• IEC60269-6• GB/T13539.6
Class of Operation
• gPVFeatures & Benefits
• 1000VDC Photovoltaic (PV) system available• 315-630A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized 3L construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity
• Striker and microswitch available
Applications
• Combiner box• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

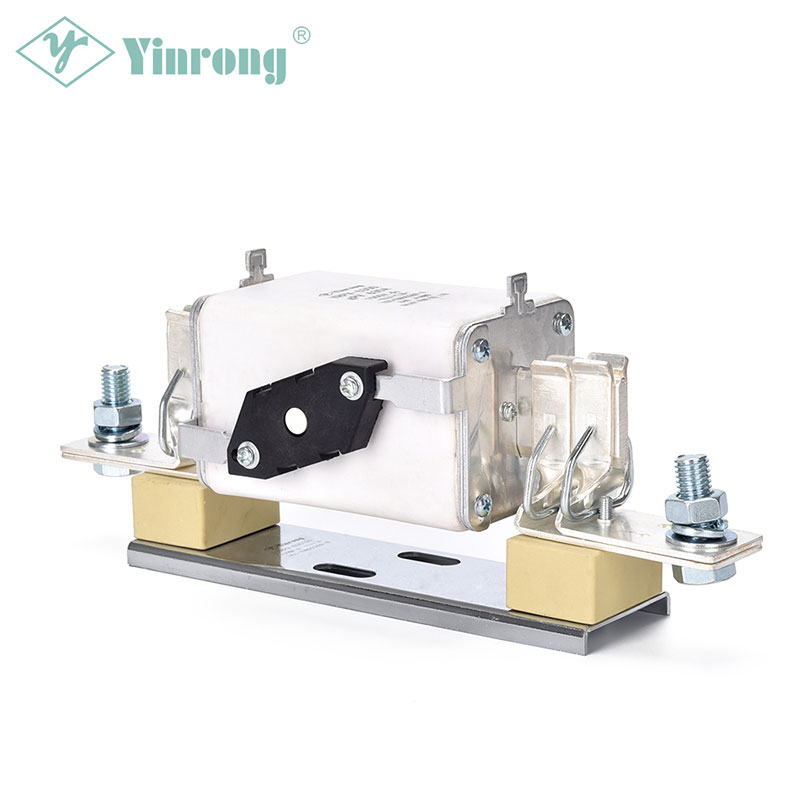

Recommended Fuse Holder
• YRPV-630D 1000VDC Fuse BaseOptional Accessories
• Striker• Microswitch
Country of Origin
• People's Republic of ChinaParameters
| Product code | Rated current | Breaking capactity | Safety certificate | Power loss1.0In(W) | Net weight | ||
|---|---|---|---|---|---|---|---|
|
|
|
|||||
| YRPV630D/315NH | 315A |
1000Vdc TUV&CE:20kA |
○ | ○ | ○ | 44.4 | 1.35kg |
| YRPV630D/350NH | 350A | ○ | ○ | ○ | 52.3 | ||
| YRPV630D/400NH | 400A | ○ | ○ | ○ | 58.2 | ||
| YRPV630D/500NH | 500A | ○ | ○ | ○ | 52.5 | ||
| YRPV630D/630NH | 630A | ○ | ○ | ○ | 91.9 | ||
Size (mm)
Model Explanation
① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……630A
④ ……Rated current of fuse link……E.g:500A
Time-current Curve
