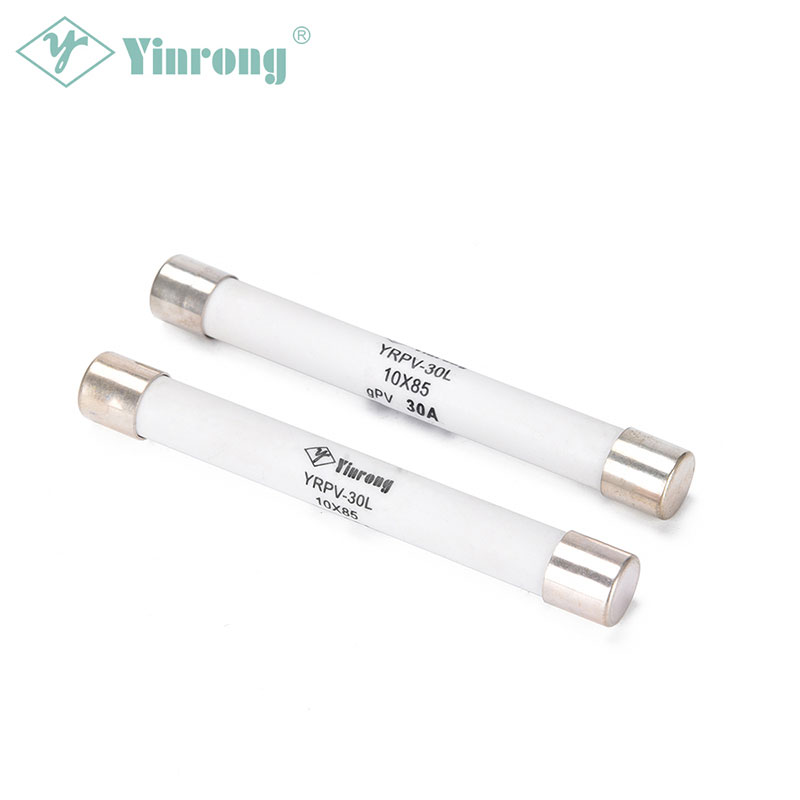

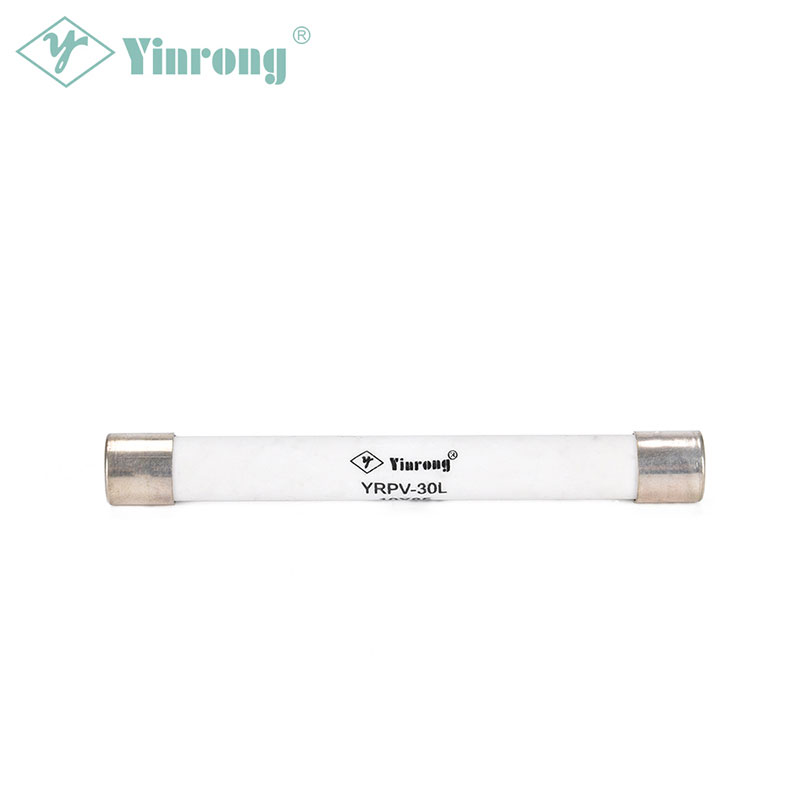

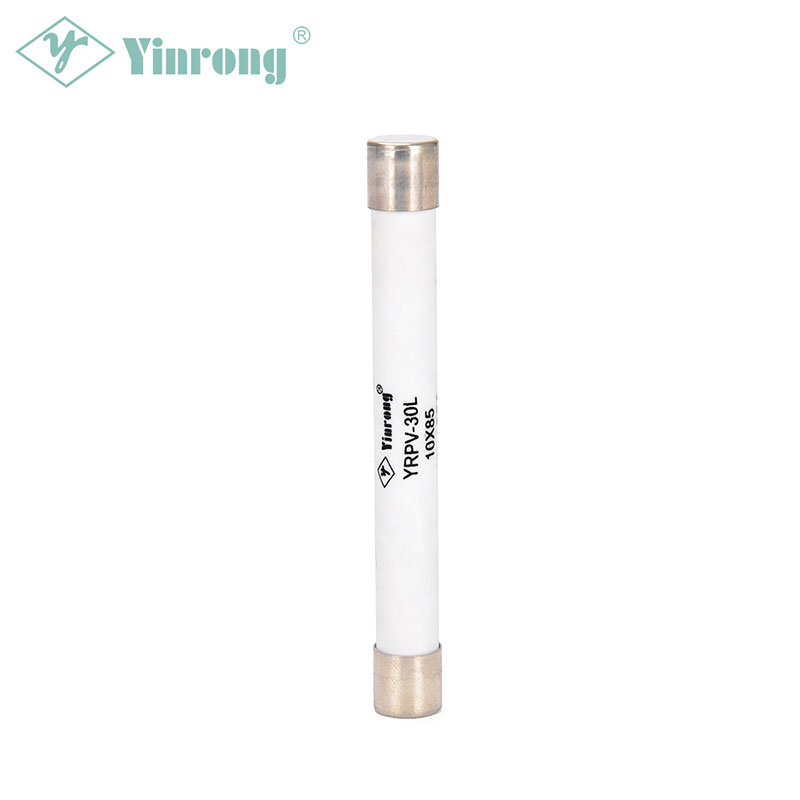

1000VDC 30A 10×85mm Solar PV Fuse Link
YRPV-30L 1000VDC Solar PV Fuse Link was engineered specifically for the protection of Photovoltaic (PV) systems. This cylindrical shape fuse link with a 10×85mm standardized size can safely protect 1000VDC Photovoltaic (PV) systems. 1000VDC 30A 10×85mm Solar PV Fuse Link is available in multiple ampere ratings from 2A to 30A, which can match mostly requirements of the Photovoltaic (PV) applications, such as PV string, PV array protection, combiner box applications and other PV modules. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong), as a driving force of the Solar PV Fuse in China, focus on the technical innovation to meet the emerging Photovoltaic (PV) market.
Send Inquiry
Product Description
1000VDC 30A 10×85mm Solar PV Fuse Link
Approvals & Standards
• IEC60269-6• UL248-19
Class of Operation
• gPVFeatures & Benefits
• 1000VDC Photovoltaic (PV) system available• 2-30A ampere ratings available
• Meets IEC and UL Photovoltaic standards for global acceptance
• Compact cylindrical construction
• Low power dissipation characteristic for energy-saving
• DIN Rail mountable
Applications
• Combiner box• PV string, PV array protection
• Inverters
• Battery charge controllers
• In-line PV module protection

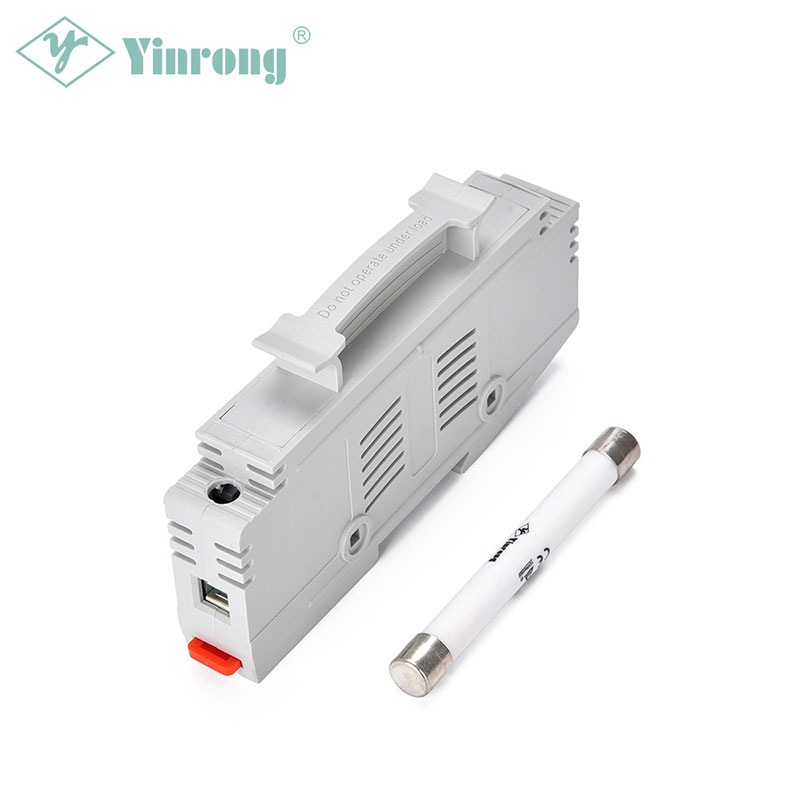

Recommended Fuse Holder
• YRPV-30L 1000VDC Fuse HolderCountry of Origin
• People's Republic of China
Parameters
| Product code | Rted current | Breaking capacity | Safety certificate |
Power loss 1.0In(W) |
Net weight | ||
|---|---|---|---|---|---|---|---|
 |
 |
 |
|||||
| YRPV30LNF | 2-30A | 1000Vdc:40kA | ○ | ○ | ○ | 6.5 | 19g |
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION
Size (mm)
Model Explanation
① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……30A
④……Size code……"L"-85mm Long size
⑤ ……Rated current of fuse link……E.g:15A
Time-current Characteristic
| Standard:UL248-19 | Standard:IEC60269-6 | ||
| 135% In | 200% In | 113% In | 145% In |
| <1h fusing | <240s fusing | >1h non fusing | <1h fusing |
Time-current Curve
We reserve the right to make technical alterations
