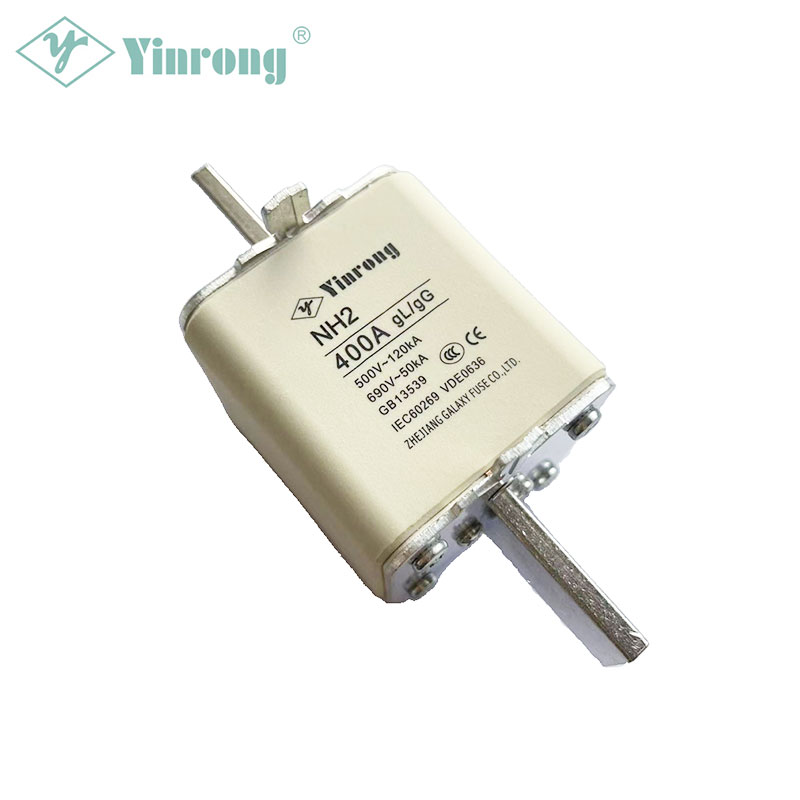

690VAC 400A NH2 HRC Fuse

China fuse producer Galaxy Fuse’s (Yinrong) 690VAC 400A NH2 HRC Fuse is designed to protect installations and equipment against overload and short-circuit currents on low voltage electrical circuits with different operating class such as gG/gL, aM and aR. This square body with blade terminals fuse was made in a standardized configuration for global acceptance. 690VAC 400A NH2 HRC Fuse is available in multiple ampere ratings from 125A up to 400A, which helps match specific requirements in various industrial applications, such as motors, transformers, low voltage distribution, control circuits and so on.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-1
• IEC60269-2

Class of Operation

• gG/gL
• aM
• aR

Features & Benefits

• Covering 500VAC, 690VAC, 800VAC and 1140VAC electrical distribution circuits and various industrial applications
• 125-400A ampere ratings available
• Full range protection
• Meets IEC standards for global acceptance
• Standardized square body with blade terminals construction
• Low power dissipation performance for lower temperature rise
• Open-ended installation

Applications

• General industrial applications
• Motor drives
• LV-net works
• Electric cabinet
• Solid state relays
• Semiconductor devices
• Power rectifiers
• Uninterruptable Power System
• Converters

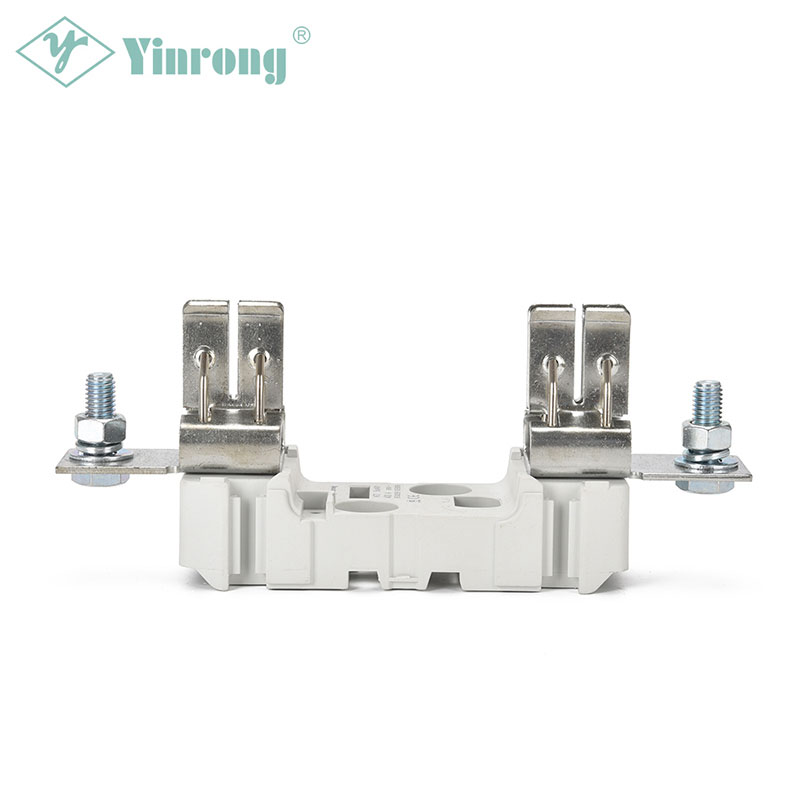

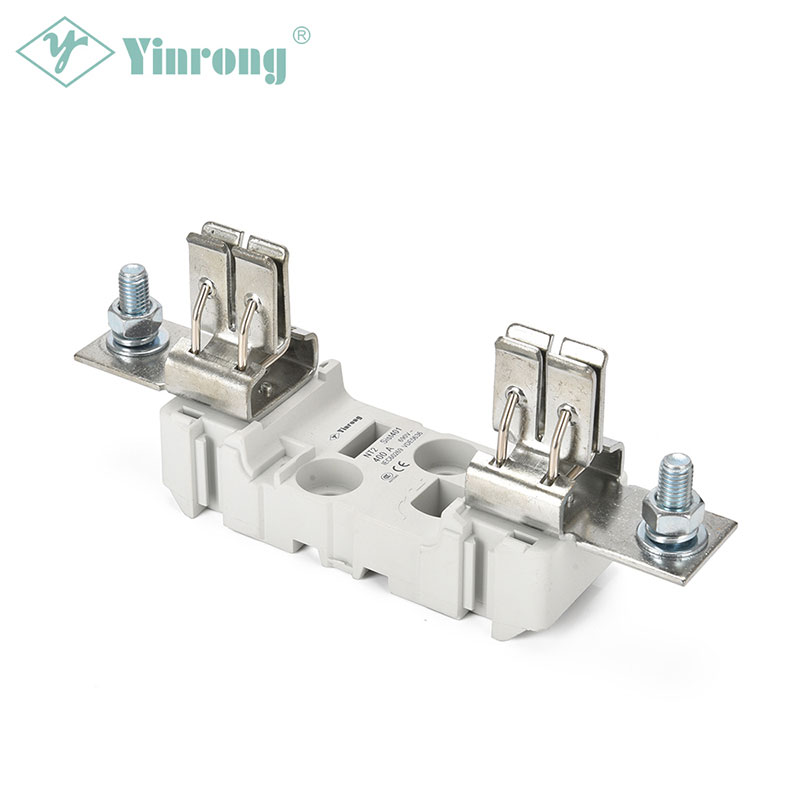

Recommended Fuse Holder

• YR:Sist401 (NH2 Fuse Base)

Optional Accessories

• NH Fuse Handle (Extractor)

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated current (A)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated current (A)	A	D	E	H	H1	H2
NH2	500/690	125, 160, 200, 224, 250, 300, 315, 355, 400	150	72	58	72	25	58

Model/Size	Rated Voltage (V)	Rated current (A)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated current (A)	A	B	F	H
YR:Sist401	690	400	224	200	35	89

Size (mm)
