690VAC 160A NT00 HRC Fuse

Galaxy Fuse’s (Yinrong) 690VAC 160A NT00 HRC Fuse is generally designed to cover a wide range of protection for most of industrial applications with different operating class such as gG/gL, aM and aR. This square body with blade terminals fuse was made in a standardized configuration for global acceptance. 690VAC 160A NT00 HRC Fuse is available in multiple ampere ratings from 4A up to 160A, which helps match specific requirements in various industrial applications, such as motors, transformers, low voltage distribution, control circuits and so on.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-1
• IEC60269-2

Class of Operation

• gG/gL
• aM
• aR

Features & Benefits

• Covering 500VAC, 690VAC, 800VAC and 1140VAC electrical distribution circuits and various industrial applications
• 4-160A ampere ratings available
• Full range protection
• Meets IEC standards for global acceptance
• Standardized square body with blade terminals construction
• Low power dissipation performance for lower temperature rise
• Open-ended installation

Applications

• General industrial applications
• Motor drives
• LV-net works
• Electric cabinet
• Solid state relays
• Semiconductor devices
• Power rectifiers
• Uninterruptable Power System
• Converters

Recommended Fuse Holder

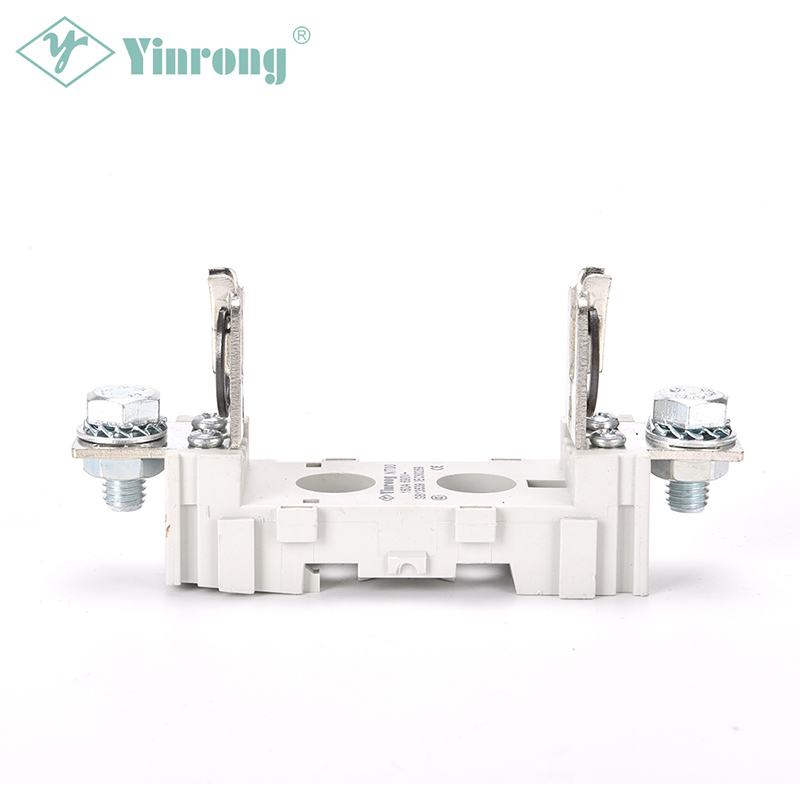

• YR:Sist101 (NT00 Fuse Base)

Optional Accessories

• NT Fuse Handle (Extractor)

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated current (A)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated current (A)	A	D	E	H	H1	H2
NT00	500/690	(4~100), 125, 160	78	49	29	56	15	45

Model/Size	Rated Voltage (V)	Rated current (A)	Overall Dimension
YR:Sist101	690	160	Fig.2

Size (mm)
