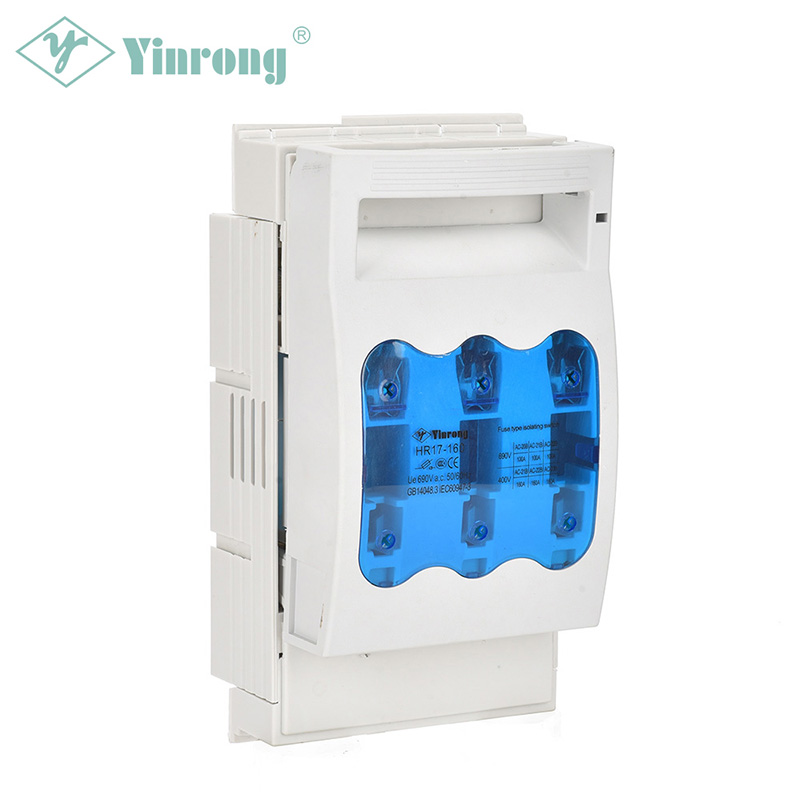

690VAC 160A Horizontal 3P Fuse Switch Disconnector

Galaxy Fuse’s (Yinrong) YR:HR17-690VAC 160A Horizontal 3P Fuse Switch Disconnector is suitable for short circuit protection and overload protection of cable and power equipment of the distribution system. In the case of a short circuit, the current can be broken by the fuse link inside. With the features of high isolating function and high durability, YR:HR17-160/3 Horizontal Fuse switch disconnector can withstand high short circuits.

Send Inquiry

Product Description

Approvals & Standards

• IEC60947-3

Features & Benefits

• High isolation function
• High durability
• Withstands high short circuits
• 160A ampere ratings
• 3 pole version
• Allows checking the state of the fuses through a transparent cover.

Applications

• Machine switching (on/off) (HVAC, Crane, Pump, Conveyor)
• Power distribution
• Low voltage switchboard
• Motor control centers (Isolating and protecting motor starters)
• Security applications
• Power plants
• UPS and telecom applications

Country of Origin

• People's Republic of China

Parameters

Model / Size	Rated Voltage (V)	Rated current (A)	Power Frequency Withstand Voltage (V)	Recommended Fuse Link Model/Size	Overall Dimension
Model / Size	Rated Voltage (V)	Rated current (A)	Power Frequency Withstand Voltage (V)	Recommended Fuse Link Model/Size	A	E	H	H1	B
YR:HR17-160/3	690V	160A	3000V	NT00C, NT00, NH00C, NH00	202	106	83	208	65

Size (mm)
