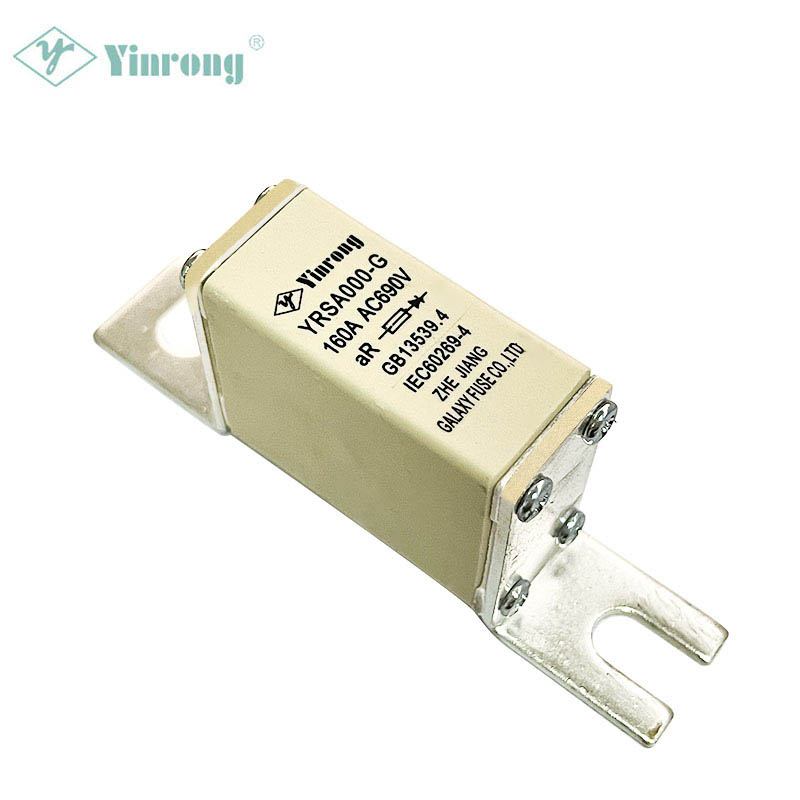

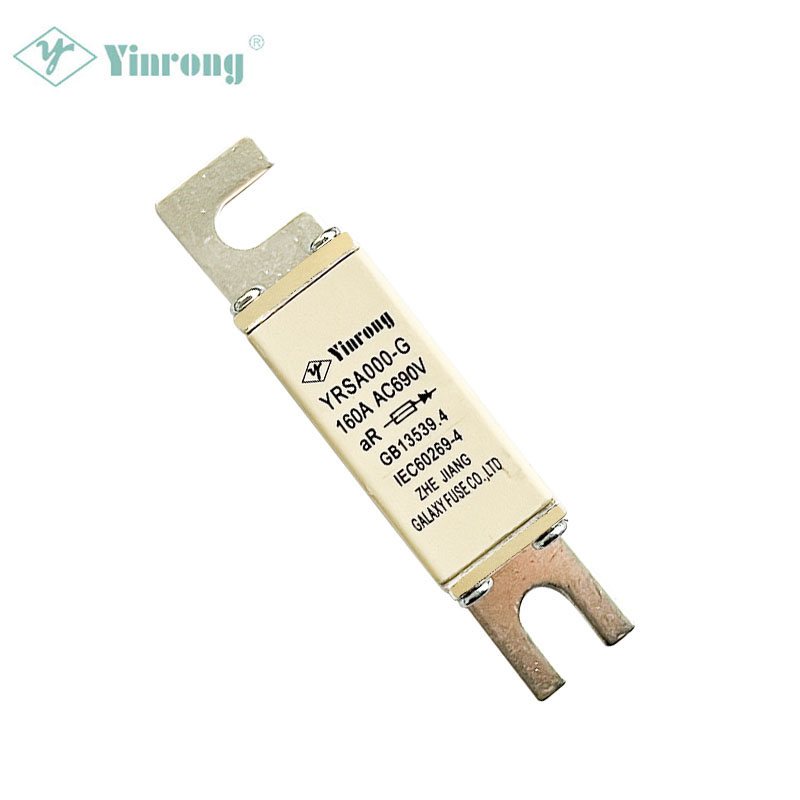

690V 315A YRSA000-G High Speed Fuse
Galaxy Fuse is a leading China 690V 315A YRSA000-G High Speed Fuse manufacturers. China high speed fuse supplier Galaxy Fuse (Yinrong)’s YRSA000-G high speed fuse is specially designed to protect semiconductor devices. YRSA000-G high speed fuse is designed for short-circuit protection only. YRSA000-G high speed fuse offers a wide amperage rating of 10-315A under the rated voltage of 690V/700VAC, which can meet most semiconductor protection. This YRSA000-G high speed fuse conformed to the nation standard GB13539.4 and the international electrical committee standard IEC60269-4. With a powerful R＆D capacity, Galaxy Fuse (Yinrong) also offers various high speed fuses to meet emerging energy storage applications.
Send Inquiry
Product Description
690V 315A YRSA000-G High Speed Fuse
• IEC60269-4
• 10-315A ampere ratings available
• High Interrupting rating
• Square body DIN 43653 bolted tags mounting
• Visual indicator available
• Conforms to IEC standards for global acceptance
• Low power loss and temperature rise for energy efficiency
• AC/DC common systems
• Frequency converters
• Reduced rated voltage starters
• Battery energy storage systems
• Regenerative drives
• Other semiconductors
Approvals & Standards
• GB/T13539.4• IEC60269-4
Class of Operation
• aRFeatures & Benefits
• 690V/700VAC electrical system available• 10-315A ampere ratings available
• High Interrupting rating
• Square body DIN 43653 bolted tags mounting
• Visual indicator available
• Conforms to IEC standards for global acceptance
• Low power loss and temperature rise for energy efficiency
Applications
• Power converters/rectifiers• AC/DC common systems
• Frequency converters
• Reduced rated voltage starters
• Battery energy storage systems
• Regenerative drives
• Other semiconductors
Country of Origin
• People's Republic of China
Parameters
| P/N | Size | Current (A) | I²t (A²s) 690V/700VAC |
Power Loss (W) |
Mounting | |
|---|---|---|---|---|---|---|
| Pre-arcing | Melt | |||||
| YRSA000-G-690V/10A | 000 | 10 | 4 | 26 | 3 |
Bolt M8 Torque 10N.m |
| YRSA000-G-690V/16A | 16 | 7 | 47 | 5.5 | ||
| YRSA000-G-690V/20A | 20 | 11 | 77 | 7 | ||
| YRSA000-G-690V/25A | 25 | 19 | 129 | 9 | ||
| YRSA000-G-690V/32A | 32 | 40 | 270 | 10 | ||
| YRSA000-G-690V/40A | 40 | 68 | 455 | 12 | ||
| YRSA000-G-690V/50A | 50 | 116 | 772 | 15 | ||
| YRSA000-G-690V/63A | 63 | 214 | 1430 | 16 | ||
| YRSA000-G-690V/80A | 80 | 385 | 2560 | 19 | ||
| YRSA000-G-690V/100A | 100 | 690 | 4650 | 24 | ||
| YRSA000-G-690V/125A | 125 | 1190 | 8500 | 28 | ||
| YRSA000-G-690V/160A | 160 | 2200 | 15800 | 32 | ||
| YRSA000-G-690V/200A | 200 | 4180 | 27800 | 38 | ||
| YRSA000-G-690V/250A | 250 | 7650 | 51300 | 42 | ||
| YRSA000-G-690V/315A | 315 | 11900 | 80300 | 50 | ||
Size (mm)
Time Current Characteristic Curve
