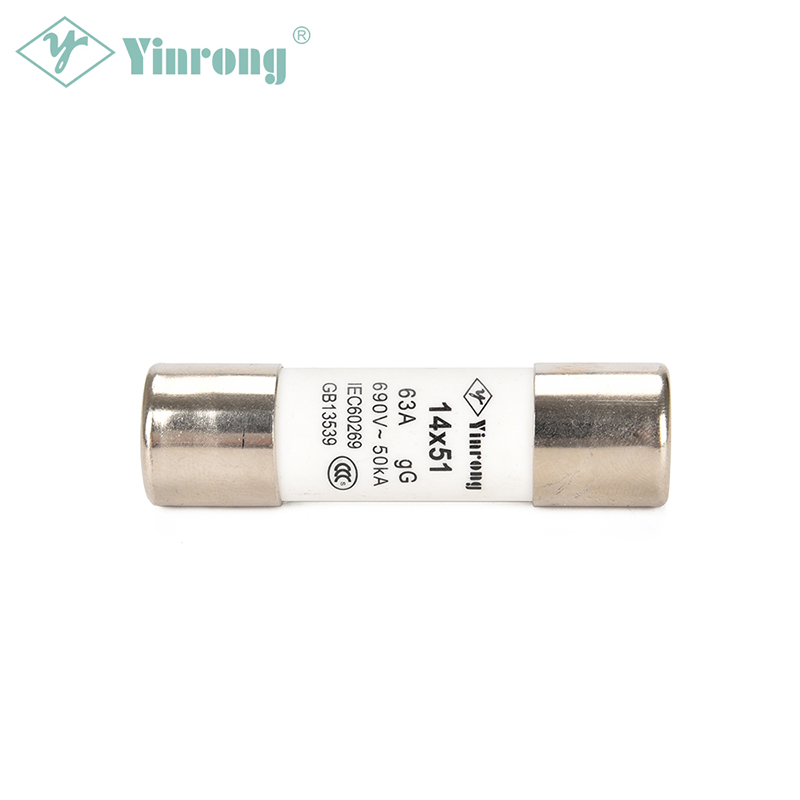

500VAC 63A 14×51mm Cylindrical HRC Fuse Link

RT18-500VAC 63A 14×51mm Cylindrical HRC Fuse Link is specifically designed to cover a wide range of protection for general industrial applications, which include gG/gL, aM and aR. This cylindrical shape fuse link with a 14×51mm standardized size was made in a compact configuration and can save more space. RT18-63 14×51mm Fuse Link is available in multiple ampere ratings from 2A to 63A, which helps match specific requirements in various industrial applications, such as LV-net works, solid state relays, cable protection and so on.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-1
• IEC60269-2

Class of Operation

• gG/gL
• aM
• aR

Features & Benefits

• Covering 250VAC, 380VAC, 500VAC, and 690VAC electrical distribution circuits and various industrial applications
• 2-63A ampere ratings available
• Full range protection
• Meets IEC standards for global acceptance
• Standardized cylindrical construction
• Low power dissipation performance for lower temperature rise
• DIN Rail mountable

Applications

• General industrial applications
• Motor drives
• LV-net works
• Cable protection
• Solid state relays
• Semiconductor devices
• Power rectifiers
• Uninterruptable Power System
• Converters

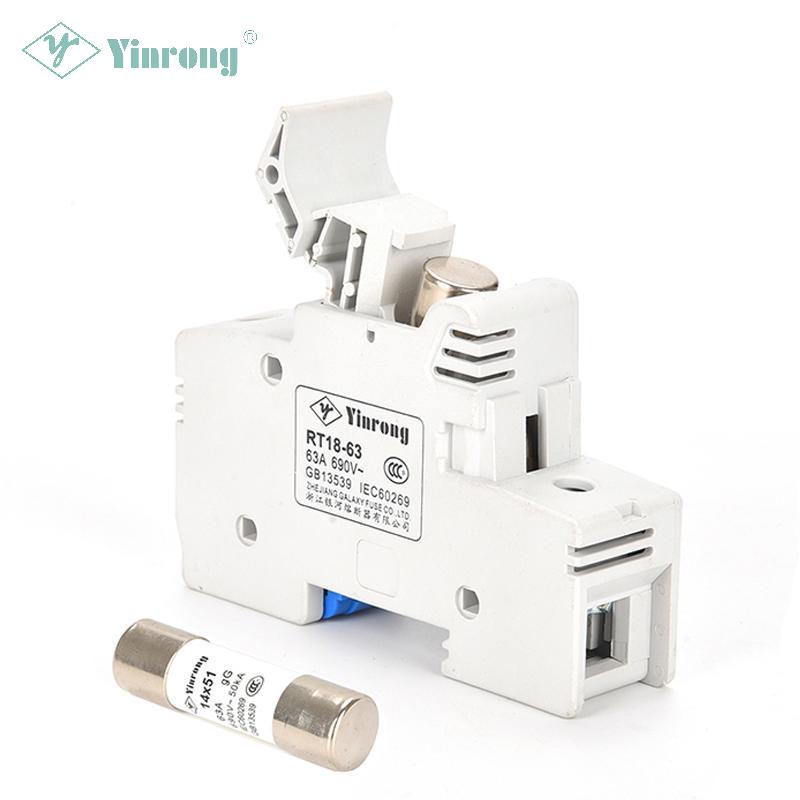

Recommended Fuse Holder

• RT18-63 Fuse Holder

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	RatedCurrent (A)	OverallDjmension
Model/Size	Rated Voltage (V)	RatedCurrent (A)	ΦC	A	Fig.
10.3x38T	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38T	Fig.1
5x20	250	0.5,1,2,4,6,10,12,13	5	20	Fig.2
5x25	250	0.5,1,2,4,6,10,12,16	5	25
6x20	250	0.5,1,2,4,6,10,12,16	6	20
6.3x23	250	0.5,1,2,4,6,10,12,16,20	6.3	23
6.3x25	250	0.5,1,2,4,6,10,12,16,20	6.3	25
6.3 x31.5	250/500	0.5,1,2,4,6,10,12,16,20	6.3	31.5
8.5x23	250	0.5,1,2,4,6,10,12,16,20,25	8.5	23
8.5 x31.5	250/500	0.5,1,2,4,6,10,12,16,20,25	8.5	31.5
8.5 x36	380/500	2,4,6,8,10,12,16,20,25,32	8.5	36
10x30	380/500	2,4,6,8,10,12,16,20,25,32	10	30
10.3x28.5	250	2,4,6,8,10,12,16,20,25,32	10.3	28.5
10.3x31.5	250/500	2,4,6,8,10,12,16,20,25,32	10.3	31.5
10.3x34	250/500	2,4,6,8,10,12,16,20,25,32	10.3	34
10.3x38	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38
10.3x57	690	2,4,6,8,10,12,16,20,25,32	10.3	57
14.3x38	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	38
14.3x45	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	45
14.3x51	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51
14.3x67	690	2,4,6,8,10,12,16,20,25,32,40,50	14.3	67
15x50	380/500	20,25,32,40,50	15	50
16.7x35	250/500	16,20,25,32,40,50,63	16.7	35
18x37	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	37
18x50	690	2,4,6,8,10,12,16,20,25,32,40,50,63	18	50
20.5x40	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	40
20.5x76	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76
20.5x114	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114
20.5x127	690	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127
22.2x58	380/500	10,16,20,25,32,40,50,63,80,100,125	22.2	58
27x60	690	32,40,50,63,80	27	60
27x139	690	32,40,50,63	27	139
27x147	690	32,40,50,63	27	147
30x57	690	16,20,25,32,40,50,63,80,100,125	30	57
14.3x51H	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51H	Fig.3
20.5 x76H	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76H
20.5x114H	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114H
20.5x 127H	690	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127H
22.2 x58H	690	10,16,20,25,32,40,50,63,80,100,125	22.2	58H
27x 139H	690	32,40,50,63	27	139H
27x 147H	690	32,40,50,63	27	147H

Size (mm)
