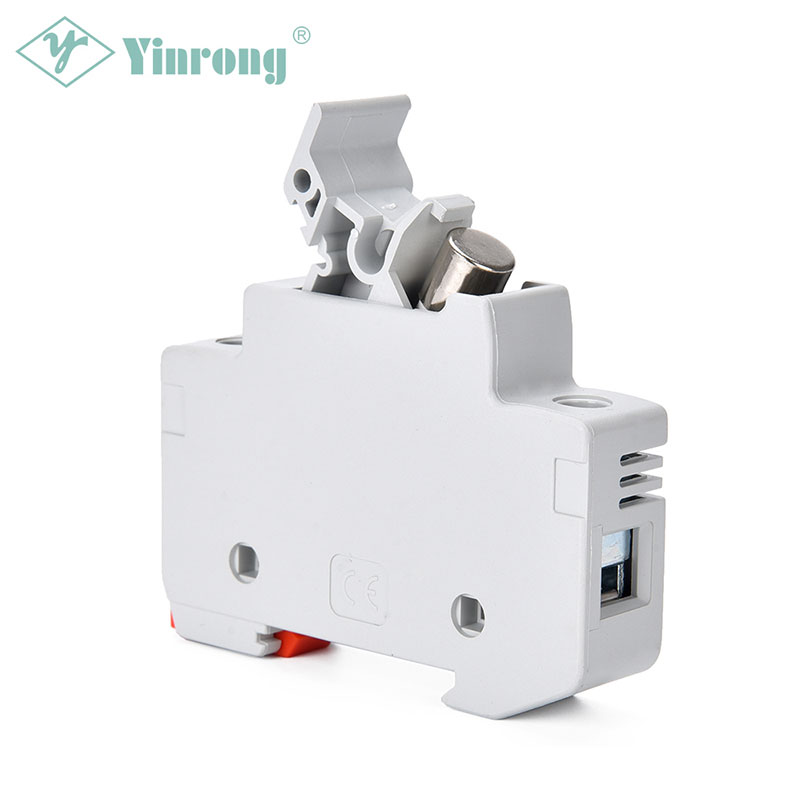

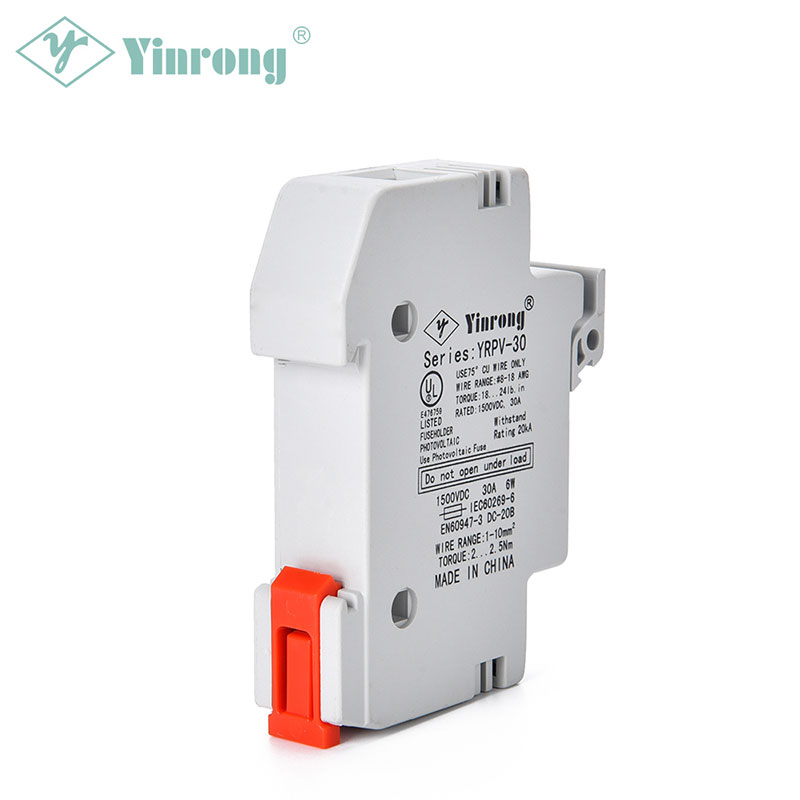

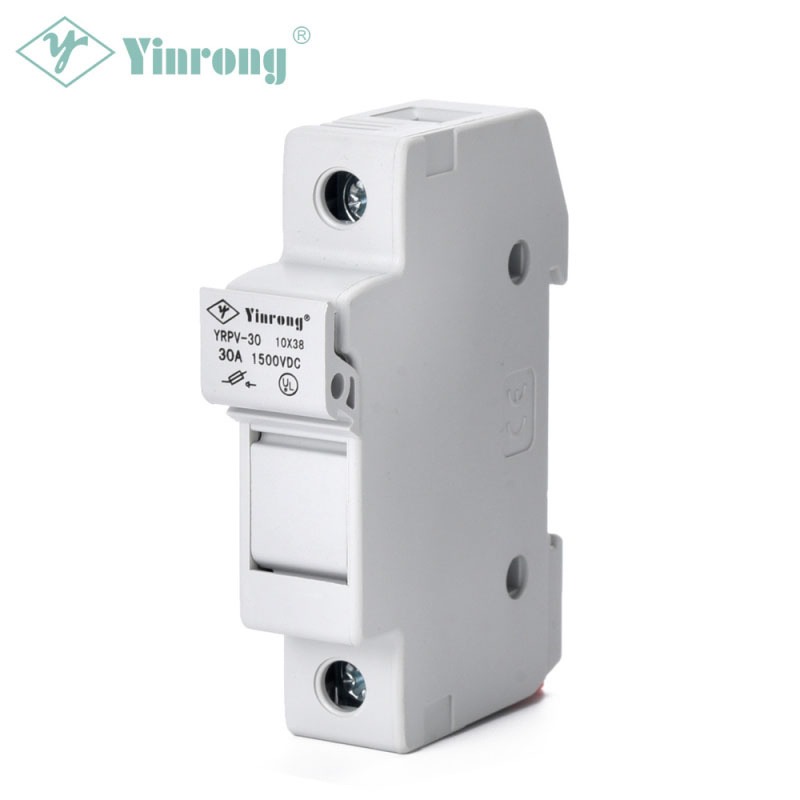

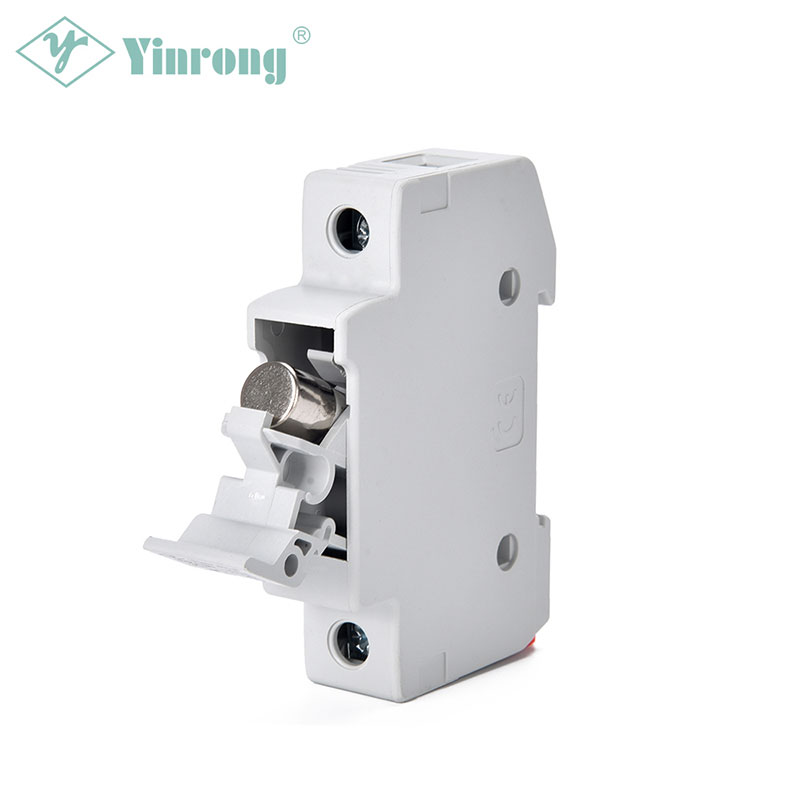

1500VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder

The YRPV-30 1500VDC 10×38mm PV Fuse Holder is specifically designed to provide rapid protection under conditions of overload current associated with Photovoltaic (PV) systems. The recommended fuse link size is 10×38mm, which secures the 1500VDC Photovoltaic (PV) systems. The YRPV-301500VDC 10×38mm PV Fuse is most commonly used in PV combiner boxes, inverters, etc. 1500VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder was made of the flame-retardant shell with V0 standard, and the dead-front design made it possible to match the busbar mounting in the Photovoltaic (PV) system. 10×38mm Photovoltaic Fuse Holder is also available in 1, 2, 3 and 4-pole configurations.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-6
• UL4248-19
• EN60947-3

Class of Operation

• gPV

Features & Benefits

• YRPV-30 1500VDC 10×38mm Fuse Link recommended
• 1500VDC Photovoltaic (PV) system available
• 30A ampere ratings
• Available in 1, 2, 3 and 4-pole configurations
• Meets IEC and UL standards for global acceptance
• TUV, CE, UL approved
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection
• DIN Rail mounting
• No fuse pullers or tools required for fuse removal

Applications

• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• Re-combiner units
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capacity	Safety certificate			Recommended Fuse Link Model/Size	Net weight
Product code	Rated current	Breaking capacity				Recommended Fuse Link Model/Size	Net weight
YRPV-30	30A	1500Vdc	●	●	●	YRPV-30(S) (Φ10.3x38)mm	58.5g

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
