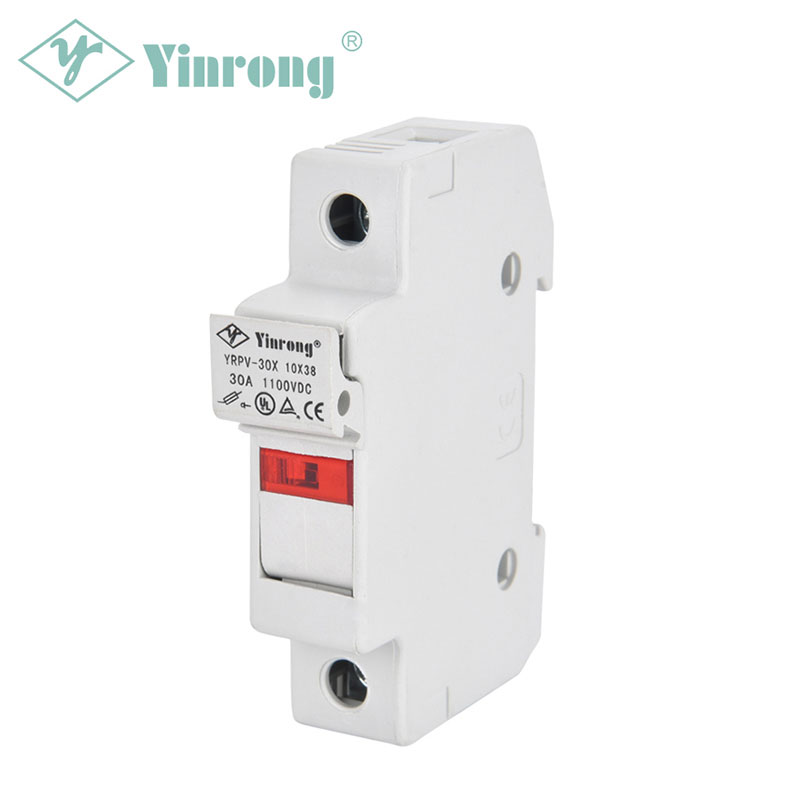

1100VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light

The YRPV-30X 1100VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light is designed for 1100VDC PV Fuse to provide rapid protection under conditions of overload current associated with the Photovoltaic (PV) systems. The recommended fuse link size is 10×38mm, securing the 1100VDC Photovoltaic (PV) systems. The most common applications of this YRPV-30X 1100VDC 10×38mm Photovoltaic fuse are PV combiner boxes, inverters, Photovoltaic strings, PV array protection, etc. YRPV-30X 1100VDC 10×38mm PV Fuse Holder was made of the flame-retardant material with V0 standard, and it's busbar mountable in the Photovoltaic (PV) system. YRPV-30X 1100VDC 10×38mm PV Fuse Holder are also available in 1, 2, 3 and 4-pole configurations.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-6
• UL4248-19
• EN60947-3

Class of Operation

• gPV

Features & Benefits

• YRPV-30 1100VDC 10×38mm Fuse Link recommended
• 1100VDC Photovoltaic (PV) system available
• 30A ampere ratings
• Available in 1, 2, 3 and 4-pole configurations
• Meets IEC and UL standards for global acceptance
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection

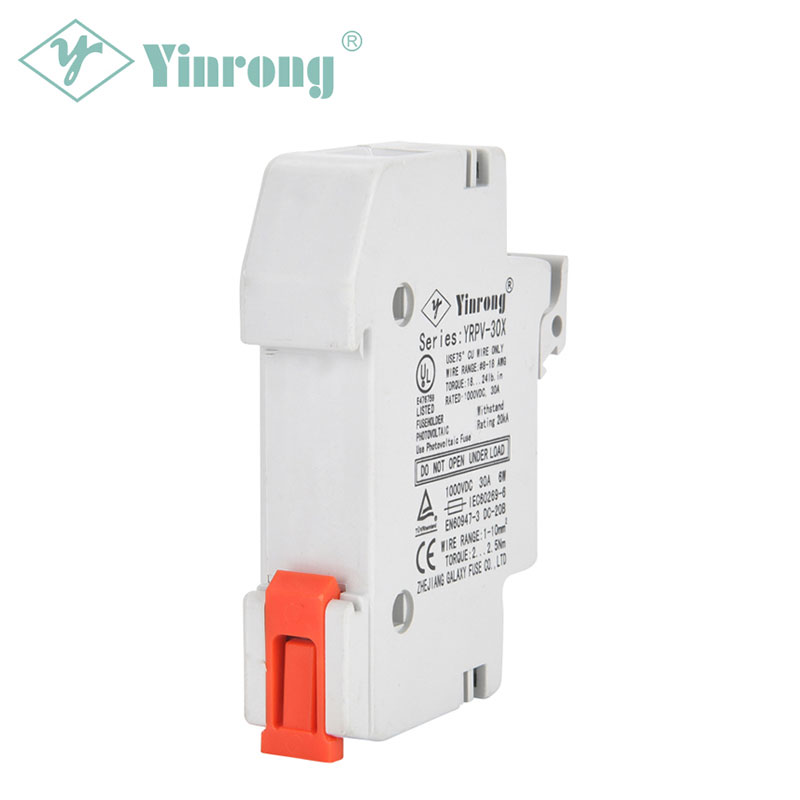

• DIN Rail mounting

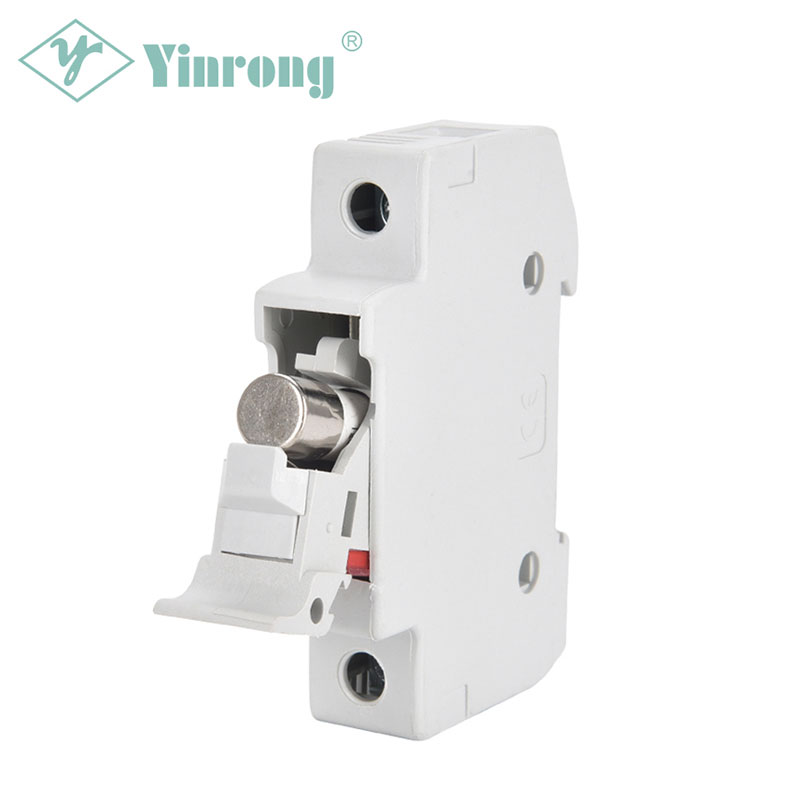

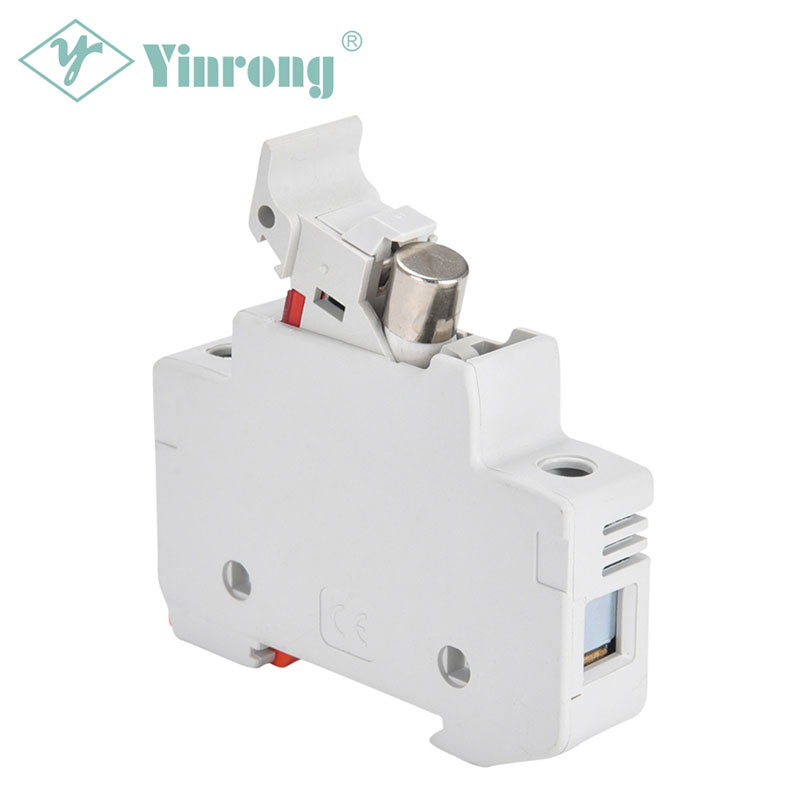

• No fuse pullers or tools required for fuse removal

Applications

• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• Re-combiner units
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only
• LED light indicator available

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capacity	Safety certificate			Recommended Fuse Link Model/Size	Net weight
Product code	Rated current	Breaking capacity				Recommended Fuse Link Model/Size	Net weight
YRPV-30X	30A	1100Vdc	○	○	○	YRPV-30(S) (Φ10.3x38)mm	61.5g

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
